| LED Name | Description |
|---|---|

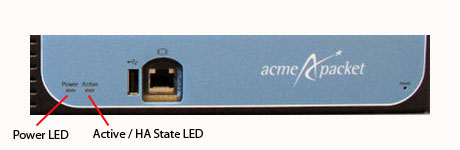

| Power | Illuminates when the system is powered on |
| Active / HA State | Standalone Configuration: Green - Licensed and online Unlit - Unlicensed or offline |
| Active / HA State | HA Configuration: Green - In active role Amber - In standby mode Unlit - In OutOfService state |
| LED Name | Description |
|---|---|

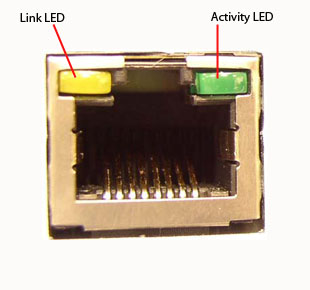

| Link | Orange - Illuminates when a link has been established between
the link partner device and the Acme Packet SBC |
| Activity | Green - Illuminates when an Ethernet connection has either transmit or receive packet activity |
 | | | |
|
