Oracle System Handbook - ISO 7.0 May 2018 Internal/Partner Edition | ||
|
|||
 |
||||||||||||

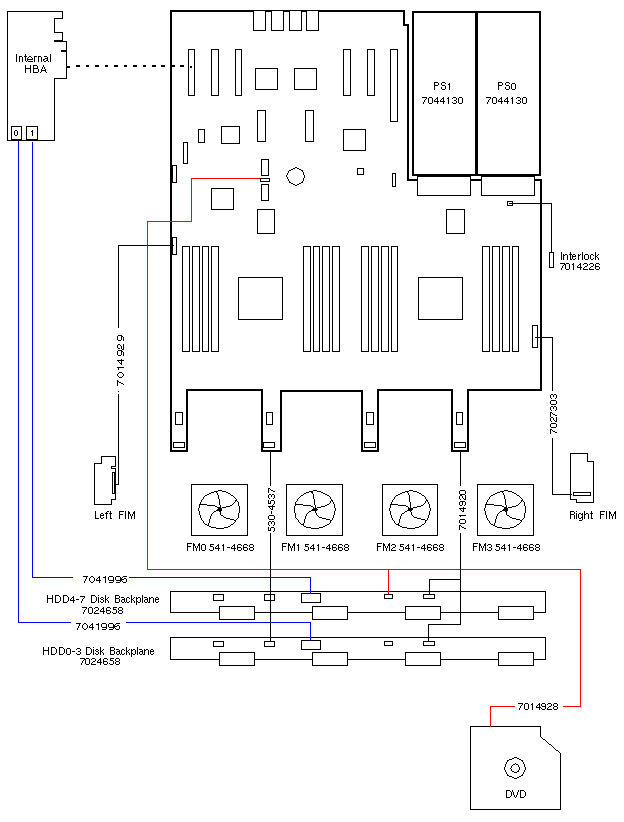

Sun Server X4-2L Wiring Diagrams8-Slot 2.5" Disk Cage with DVD and HBA12-Slot 3.5" Disk Cage with HBA and SAS Expander 24-Slot 2.5" Disk Cage with HBA and SAS Expander 8-Slot 2.5" Disk Cage with DVD and HBA

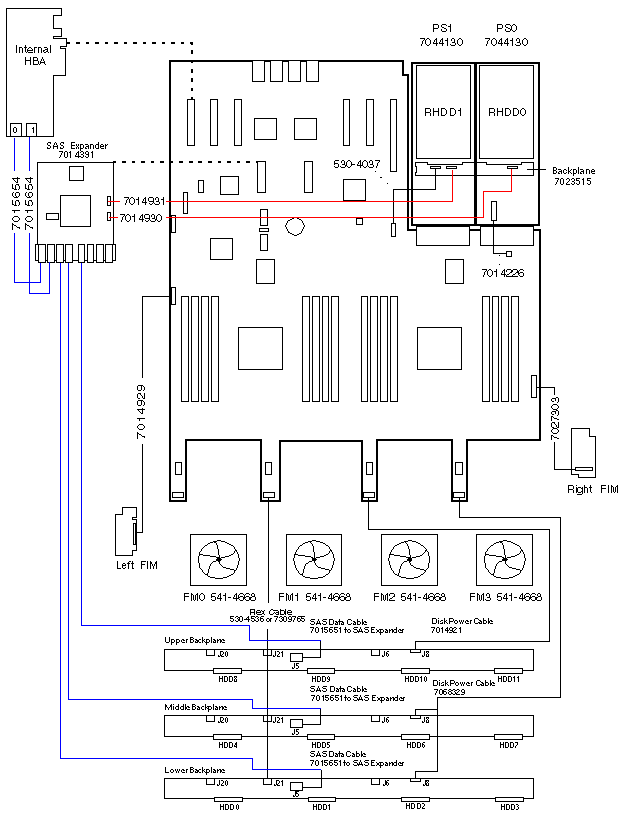

12-Slot 3.5" Disk Cage with HBA and SAS Expander

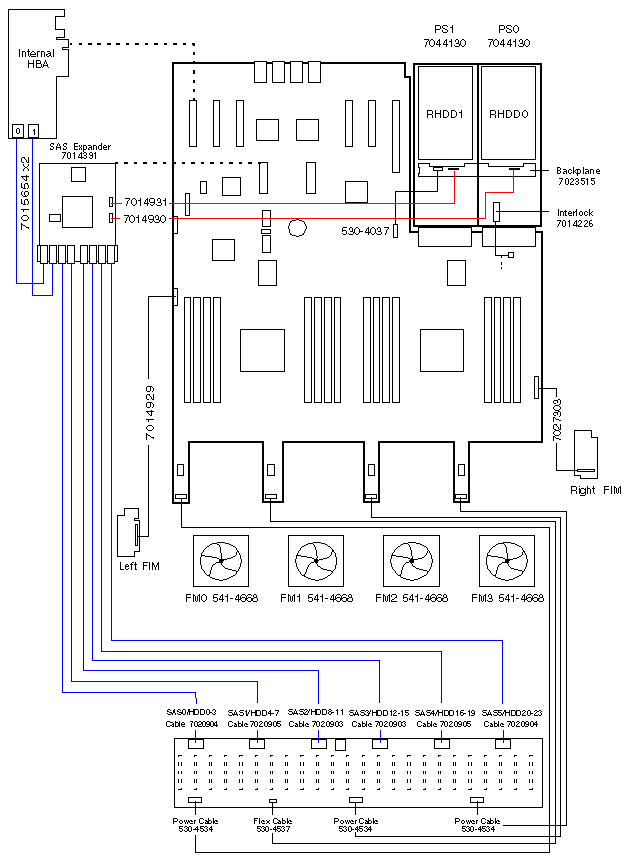

24-Slot 2.5" Disk Cage with HBA and SAS Expander
| ||||||||||||
|
||||||||||||
