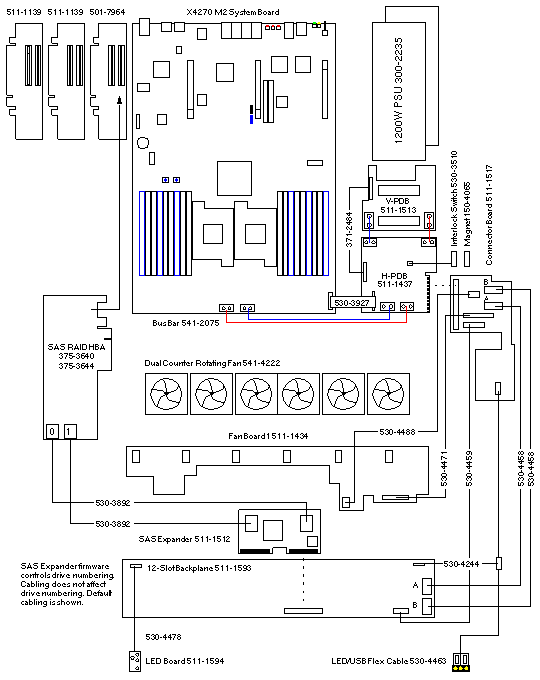

Sun Fire X4270 M2 Wiring Diagrams12-Slot Backplane + RAID HBA12-Slot Backplane + 2-Slot Backplane + RAID HBA 24-Slot Backplane + RAID HBA 24-Slot Backplane + 2-Slot Backplane + RAID HBA Sun Fire X4270 M2 Wiring Diagram12-Slot Backplane + RAID HBA Configuration

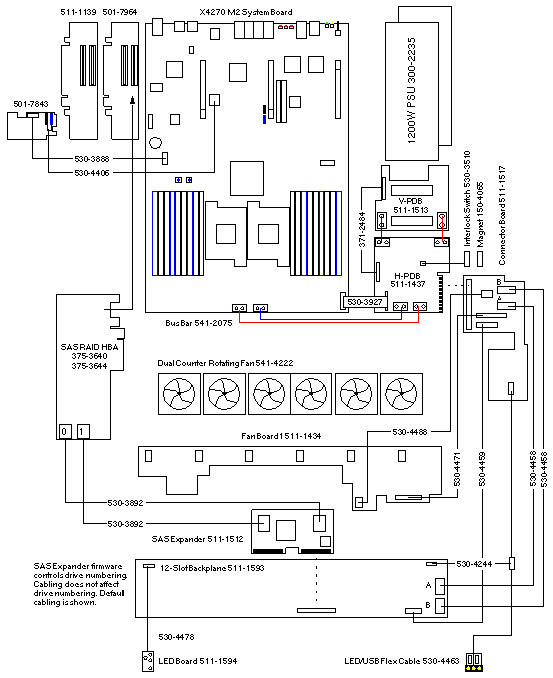

Sun Fire X4270 M2 Wiring Diagram12-Slot Backplane + 2-Slot Backplane + RAID HBA Configuration

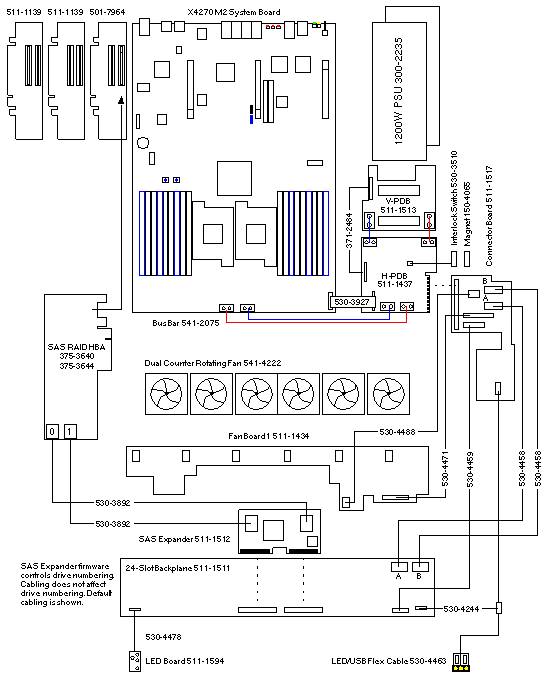

Sun Fire X4270 M2 Wiring Diagram24-Slot Backplane + RAID HBA Configuration

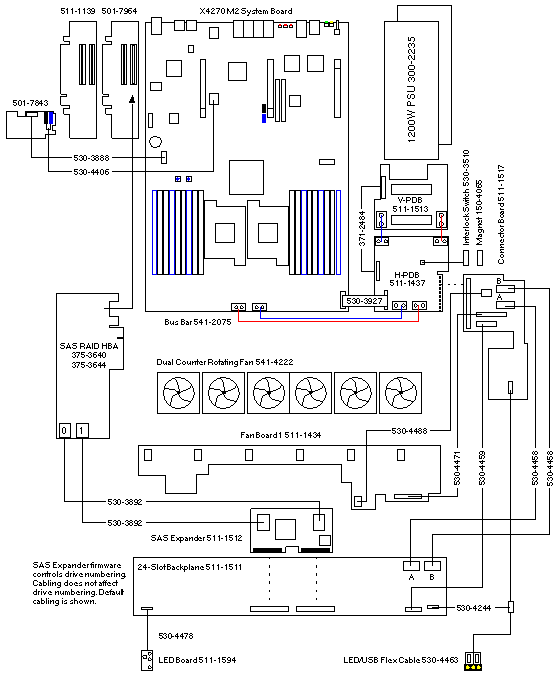

Sun Fire X4270 M2 Wiring Diagram24-Slot Backplane + 2-Slot Backplane + RAID HBA Configuration
| ||||||||||||
|
||||||||||||
