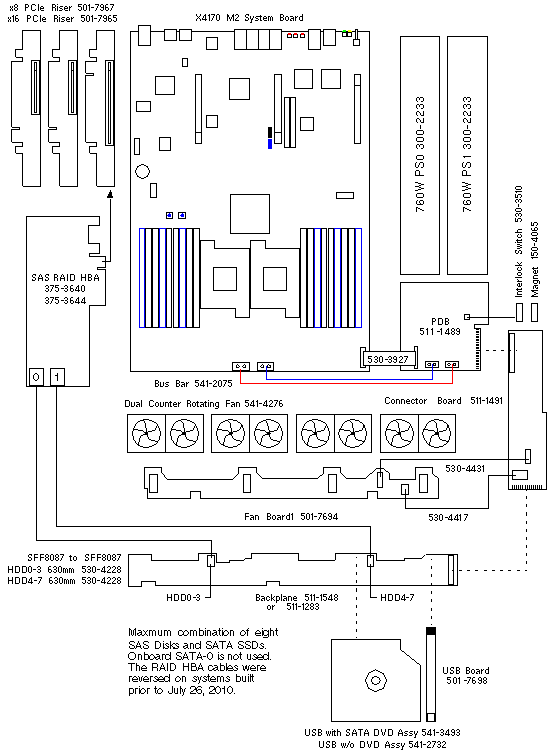

Sun Fire X4170 M2 Wiring DiagramsSAS Disk Drive/SATA SSD/RAID HBASATA Disk Drive/SATA SSD Sun Fire X4170 M2 Wiring DiagramSAS Disk Drive/SATA SSD/RAID HBA Configuration

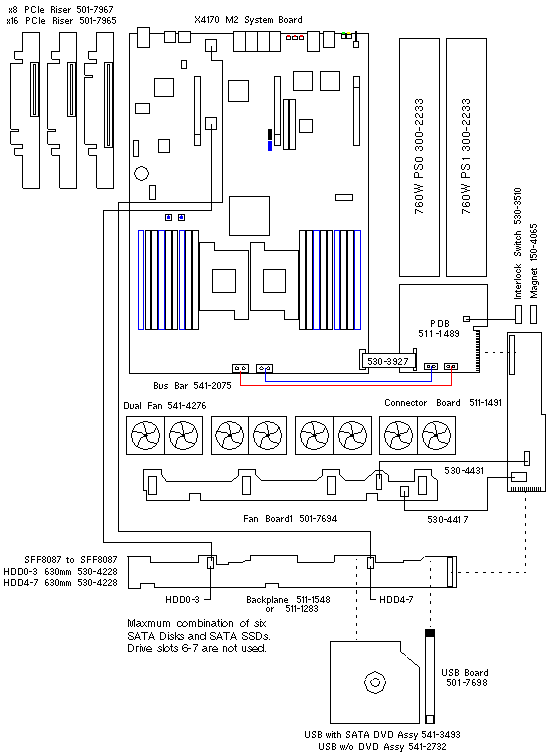

Sun Fire X4170 M2 Wiring DiagramSATA Disk Drive/SATA SSD Configuration
| ||||||||||||
|
||||||||||||
