Oracle System Handbook - ISO 7.0 May 2018 Internal/Partner Edition | ||
|
|||
 |
||||||||||||

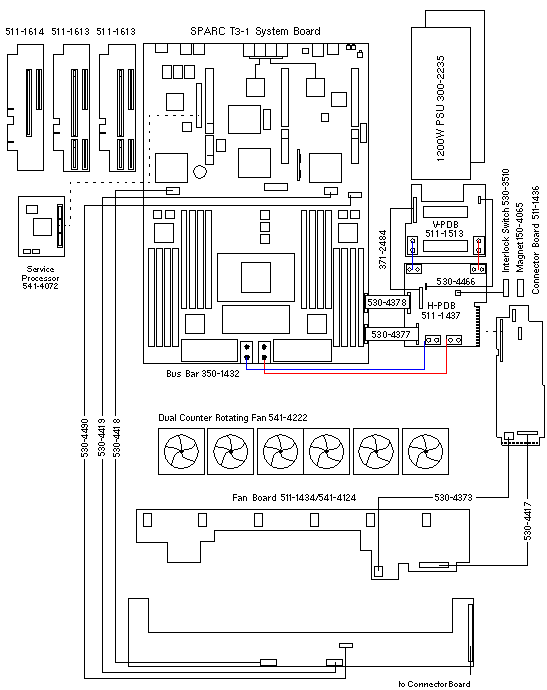

SPARC T3-1 Wiring Diagram8-Slot Backplane w/o SAS HBA Configuration8-Slot Backplane SAS HBA Configuration 16-Slot Backplane w/o SAS HBA Configuration 16-Slot Backplane SAS HBA Configuration 8-Slot Backplane w/o SAS HBA Configuration

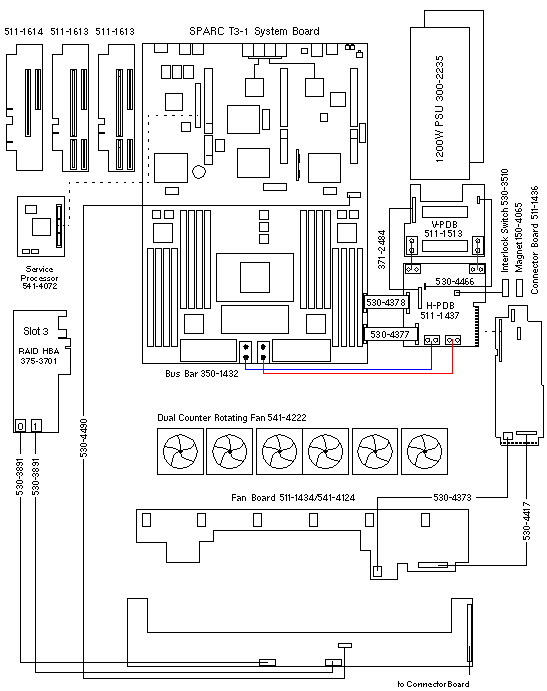

8-Slot Backplane SAS HBA Configuration

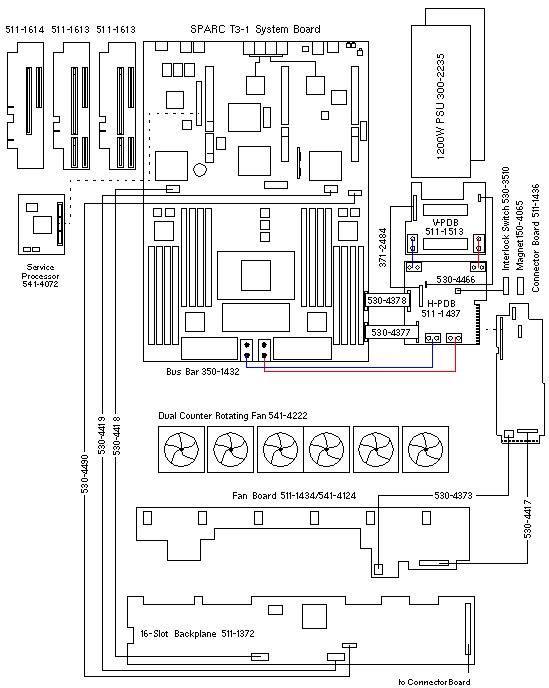

16-Slot Backplane w/o SAS HBA Configuration

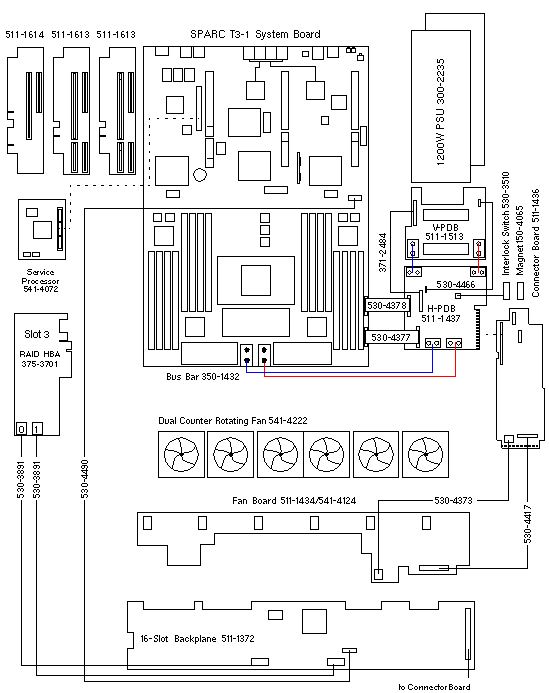

16-Slot Backplane SAS HBA Configuration
| ||||||||||||
|
||||||||||||
