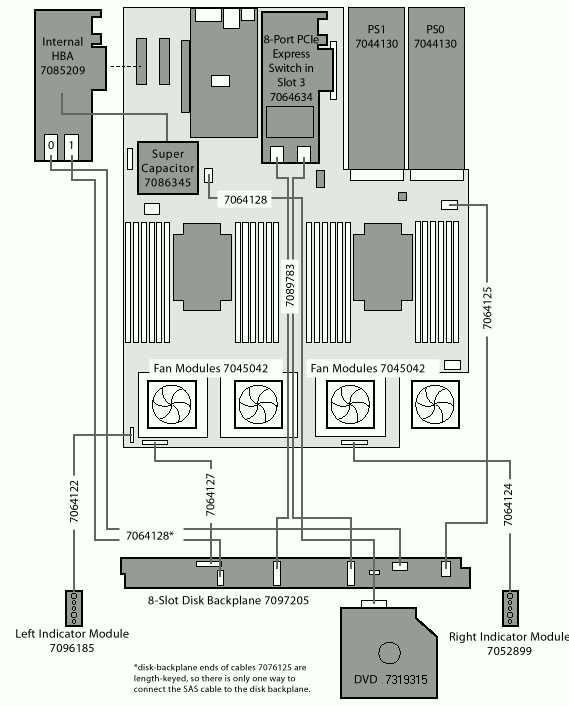

Oracle Server X6-2L Wiring Diagrams8-Slot 2.5" Disk Cage with DVD and HBA12-Slot 3.5" Disk Cage with HBA and SAS Expander 24-Slot 2.5" Disk Cage with HBA and SAS Expander 8-Slot 2.5" Disk Cage with DVD and HBAWiring Diagram Courtesy of x86 Technical Documentation Group

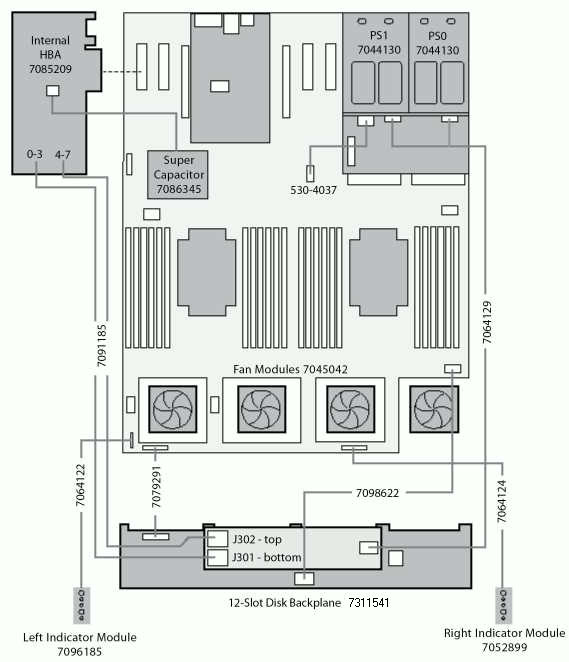

12-Slot 3.5" Disk Cage with HBA and SAS ExpanderWiring Diagram Courtesy of x86 Technical Documentation Group

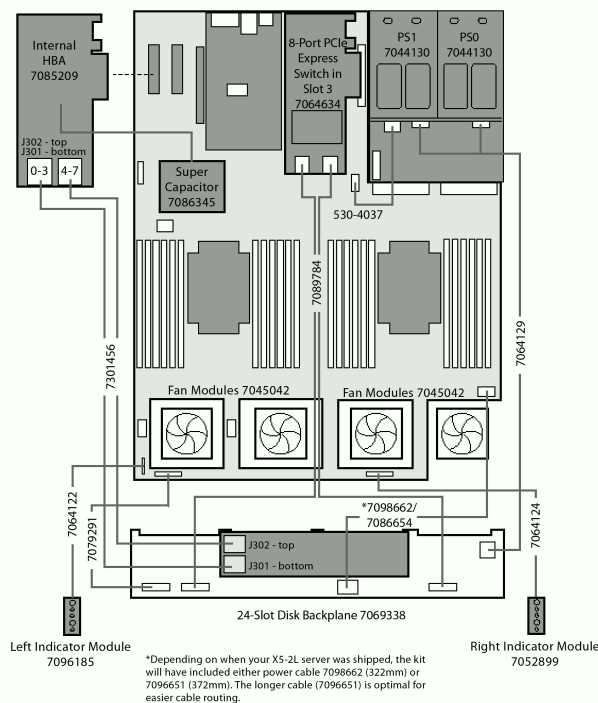

24-Slot 2.5" Disk Cage with HBA and SAS ExpanderWiring Diagram Courtesy of x86 Technical Documentation Group
| ||||||||||||
|
||||||||||||
