Netra Server X3-2 / Netra X4270 M3 Wiring Diagram

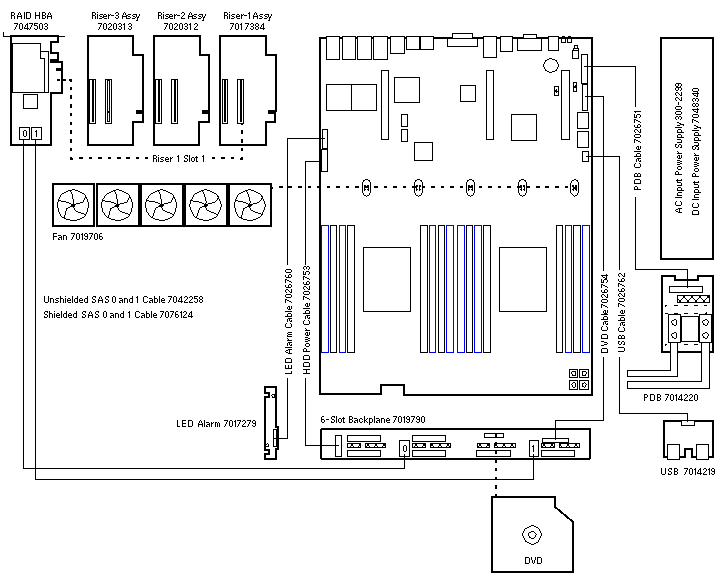

6-Slot Disk Backplane with DVD Configuration
6-Slot Disk Backplane with DVD Configuration without EU Directive 2002/95/EC

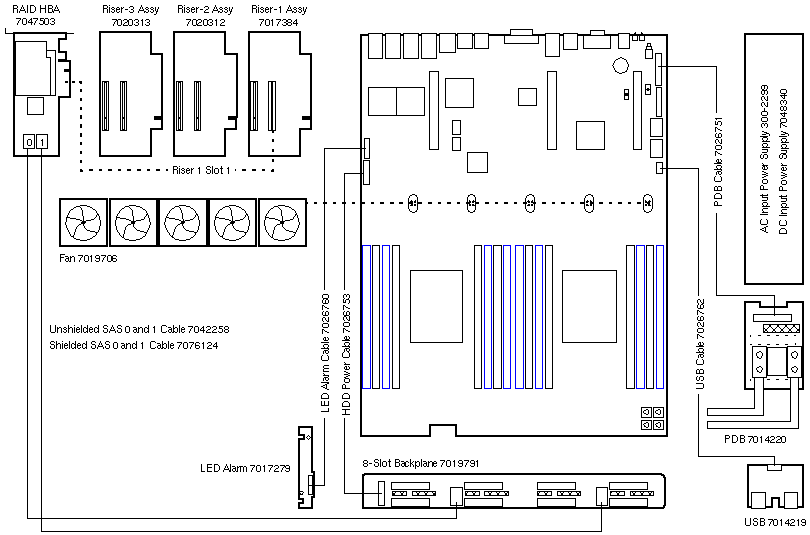

8-Slot Disk Backplane Configuration
8-Slot Disk Backplane Configuration without EU Directive 2002/95/EC


6-Slot Disk Backplane with DVD Configuration



6-Slot Disk Backplane with DVD Configuration
without EU Directive 2002/95/EC exemptions 7(c)- III and 11(b) that expire 1 January 2013



8-Slot Disk Backplane Configuration



8-Slot Disk Backplane Configuration
without EU Directive 2002/95/EC exemptions 7(c)- III and 11(b) that expire 1 January 2013
