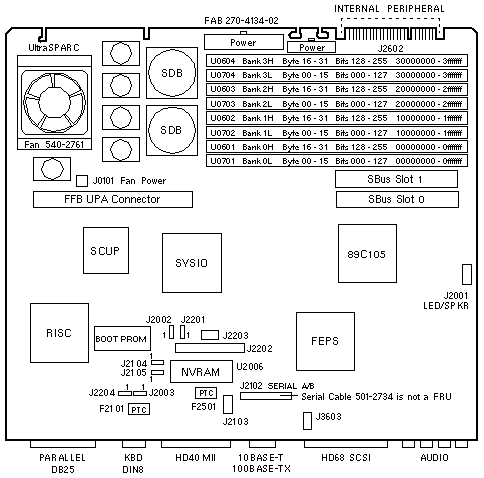

Ultra 1 Model 200E

A12-200E / Netra i 1/200E

501-4134	501-4358	501-5403
200MHz 0MB FRU FAB 270-4134	200MHz 0MB FRU FAB 270-4358	200MHz 0MB FRU FAB 270-4358

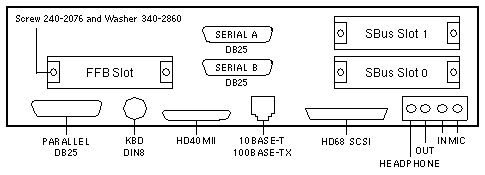

Backpanel and Connectors

Jumper Settings

JUMPER	PINS	SETTING	DESCRIPTION
J2002	1-2 2-3	In In	Select FPROM (default) Select ROMBO
J2003	1-2 2-3	In In	FPROM write protect (default) FPROM write enable
J2102	1-24	Out	Serial port connector
J2103	1-8	Out	Serial port edge test
J2104	1-2 2-3	In In	RS-232 -12Vdc RS-423 (default)
J2105	1-2 2-3	In In	RS-232 +12Vdc RS-423 (default)
J2201	1-2 2-3	Out Out	Button XIR Button POR
J2202	1-8	Out	ROMBO connector
J2203	1-8	Out	JTAG connector
J2204	1-2 2-3	In In	FPROM high half booting FPROM low half booting (default)
J3603	1-8	Out	Ethernet edge test

Configured System Boards

PART NUMBER	MEMORY SIZE	SIMM SIZE	NUMBER SIMMs
501-4144	64MB	32MB	2
501-4145	256MB	128MB	2
501-4244	128MB	64MB	2
501-4380	512MB	128MB	4

Notes

1. The minimum operating system is Solaris 2.5.1.
2. The flash PROM is soldered to the system board.
3. Use the Flash PROM Programming Utility to update the flash PROM.
4. UltraSPARC Fan 540-2761 was replaced by Heatsink 540-3361 and Shield 540-3090 in May/June 1997.

References

1. Ultra 1 Workstation Documentation.
