Sun Fire X4600

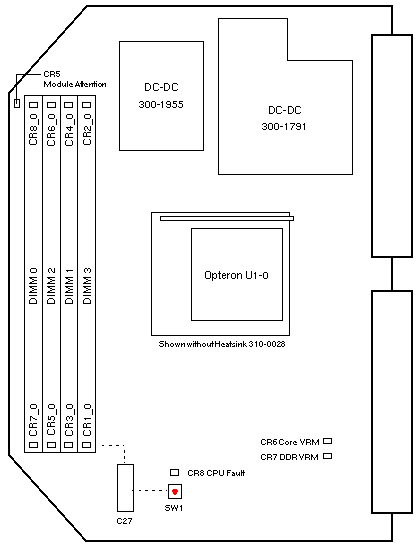

CPU/Memory Board

Options 8103A-Z / 8104A-Z / 8105A-Z

501-7589
w/o processor w/o Heatsink w/o Backplate

3.0GHz Single-Core	2.4GHz Dual-Core	2.6GHz Dual-Core
541-1283	541-1770	541-1771
0MB Assy/FRU Opteron 856 E4 Stepping Option 8103A-Z	0MB Assy/FRU Opteron 880 E6 Stepping Option 8104A-Z	0MB Assy/FRU Opteron 885 E6 Stepping Option 8105A-Z

Sun Fire X4600 Codename: Galaxy 4U

Notes

1. The minimum Solaris operating system is Solaris 10 01/06 x64.
2. Mixing CPU speeds or mixing single-core and dual-core CPUs is not supported.
3. DIMM pairs require matching characteristics including manufacturer, size, and speed.
4. Install the first DIMM pair in DIMM0/DIMM1 and the second pair in DIMM2/DIMM3.
5. Fault Remind Button SW1 lights the CPU/Memory fault LEDs for up to one minute.
6. DIMM Fault LEDs do not function correctly. Refer to BugIDs 15321115 [SUNBT6403209] and 15328351 [SUNBT6420909].
7. Replace faulty DIMMs as a pair. The DIMM FRU includes two matching DIMMs.

References

1. Sun Fire X4600 Server Documentation.
