Sun Fire X4500

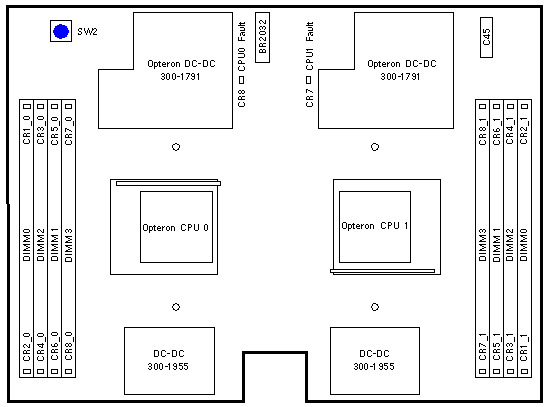

CPU/Memory Board

500-7101 CPU/Memory Board w/o CPU or Memory

501-7273 541-0780 CPU/Memory Board 0MB 2× 2.6GHz System Controller Assembly 2.6GHz CPU/Memory + I/O 501-7641 541-1915 CPU/Memory Assembly w/o CPU or Memory System Controller FRU CPU/Memory + I/O

Sun Fire X4500 Codename: Thumper

Notes

1. The minimum operating system is Solaris 10 Update 2.
2. DIMM pairs require matching characteristics including manufacturer, size, and speed.
3. Install the first DIMM pair in DIMM0/DIMM1 and the second pair in DIMM2/DIMM3.
4. Fault Remind Button SW1 lights the CPU/Memory fault LEDs for up to one minute.
5. Replace faulty DIMMs as a pair. The DIMM FRU includes two matching DIMMs.

System Controller Notes

1. Assembly 541-0776 is labeled X4500 System Controller (SC).
2. Assembly 541-0776 includes a CPU/Memory Board with Opteron Processors and Memory, Graphics Board, I/O Board, and Service Processor Board.
3. The packing slip describes 541-0776 as ASSY,GFX/CNTRLLR,2X285,8X2GB.
4. The packing slip describes F541-0597 as FRU,GRAPHICS/SRVC PROCSR,X4500.
5. The packing slip describes F541-1915 FRU,ASSY,CNTLR,IO,NO CPU,X4500.
6. FRU F541-1915 does not include Heatsinks or Processors.
7. FRU F541-1915 includes one Alcohol Wipe and one Thermal Grease Syringe.

References

1. Sun Fire X4500 Server Documentation.
