Sun Fire V60x / V65x
| 501-6637 |
PBA A99386-109
Intel Server Board SE7501WV2
MAC Address 0007e9xxxxxx
|
|
In Assembly |
Motherboard |
BIOS |
| 501-6637-01 |
380-0898-01
390-0899-01 |
501-6609 |
1161 |
| 501-6637-02 |
380-0898-02
390-0899-02 |
370-6171 |
1175 |
| 501-6637-03 |
380-0898-03
390-0899-03/-04 |
370-6171 |
1191 |

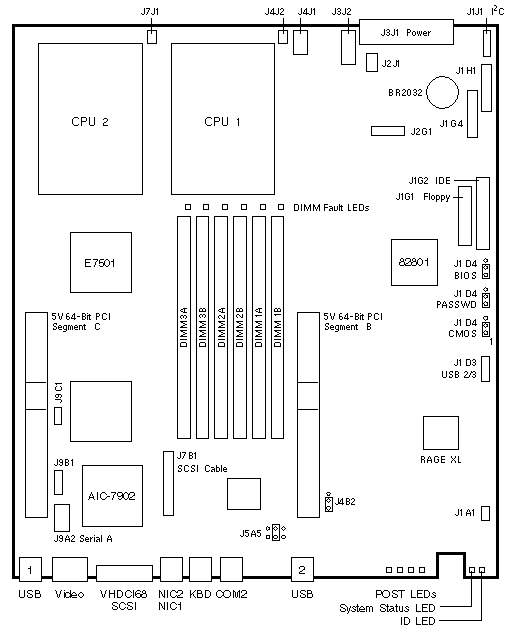

Headers and Jumpers
| LOCATION |
PINS |
SETTING |
DESCRIPTION |
| J1A1 |
2 |
NA |
HDD LED - not used |
| J1D3 |
10 |
NA |
USB Cable to Front Panel |
| J1G1 |
34 |
NA |
Floppy - not used |
| J1G2 |
40 |
NA |
IDE - not used |
| J1G4 |
34 |
NA |
Front Panel - not used |
| J1H1 |
24 |
NA |
NMI/RST/LED - not used |
| J1J1 |
5 |
NA |
I2C to Power Distribution Board |
| J2G1 |
6 |
NA |
Floppy/Front Panel/IDE |
| J2J1 |
6 |
NA |
V65x Fan Tray Power |
| J3J1 |
24 |
NA |
Power to Power Distribution Board |
| J3J2 |
12 |
NA |
V60x/V65x Fan Tray Power |
| J4J1 |
8 |
NA |
12V to Power Distribution Board |
| J4J2 |
2 |
NA |
CPU1 Fan - not used |
| J7A2 |
2 |
NA |
Chassis Int - not used |
| J7B1 |
68 |
NA |
SCSI Cable to Backplane Board |
| J7J1 |
2 |
NA |
CPU2 Fan - not used |
| J9A2 |
10 |
NA |
Serial Port A - V65x requires Option 5137 |
| J9B1 |
5 |
NA |
ICMB - not used |
| J9C1 |
3 |
NA |
IPMB - not used |
| J1D4 |
1-2
2-3
5-6
6-7
9-10
10-11 |
In
In
In
In
In
In |
Normal CMOS Operation (default)
Clear CMOS
Normal Password Operation (default)
Clear Password
Normal BIOS Operation (default)
BIOS Recovery |
| J4B2 |
1-2
2-3 |
Out
In |
BMC Boot Block Write Enabled
BMC Boot Block Write Protected (default) |
| J5A2 |
1-2
3-4 |
In
In |
DCD connected to Serial Port Pin-7
DSR connected to Serial Port Pin-7 (default) |
Sun Fire V60x Codename: Grizzly
Sun Fire V65x Codename: Grizzly 2U |
CPU Notes
- Xeon 2.8GHz and 3.06GHz core processor stepping changed from C-1 to D-1
in August 2003.
- The 2.8GHz and 3.06GHz CPU ID changed from 0F27h (C-1) to 0F29h (D-1).
- D-1 2.8GHz and 3.06GHz core processor stepping requires BIOS 1175.
- C-1 2.8GHz, f370-6044-01 and 595-6943-01, packaging is labeled MM# 851285.
- D-1 2.8GHz, f370-6044-02 and 595-6943-02, packaging is labeled MM# 854973.
- C-1 3.06GHz, f370-6045-01 and 595-6944-01, packaging is labeled MM# 851912.
- D-1 3.06GHz, f370-6045-02 and 595-6944-02, packaging is labeled MM# 853093.
- M-0 3.2GHz core processor stepping requires BIOS 1191.
Notes
- The Sun Fire V60x and V65x System Board is not a Field Replacable Unit.
- BIOS updates for V60x are available at
 V60x SW 9.0.
- BIOS updates for V65x are available at
V65x SW 9.0.
- Install memory in pairs, beginning with Bank 1, Slots 1A and 1B.
- Do not connect a USB pointing or storage device prior to network boot (PXE).
- Do not connect a USB keyboard if the LILO boot loader is installed
- USB ports are disabled until the system is booted and USB drivers are
installed.
- Use a PS/2 Keyboard if a keyboard is required for initial bootup and
configuration.
- Press F2 during bootup to enter the BIOS menu.
References
- Sun Fire V60x Server Documentation.
- Sun Fire V65x Server Documentation.
-
Sun Fire V60x and V65x BIOS and Firmware Update README, 817-3691.
-
Sun Fire V60x and V65x Server D-1 Stepping CPU BIOS Requirements, 817-4089.
|
