Sun Fire V210 / V240

375-3119
V210 only		 0MB FRU
1 × 1.002GHz US IIIi		 Motherboard Assy 375-3107
Fan/Heatsink
370-5126/370-7786/371-0837
Tomatillo 2.2		 August 2003
375-3122
V210 only		 0MB FRU
2 × 1.002GHz US IIIi		 Motherboard Assy 375-3107
Fan/Heatsink
370-5126/370-7786/371-0837
Tomatillo 2.2		 August 2003

375-3149
V210/V240		 0MB FRU
1 × 1.002GHz US IIIi		 Motherboard Assy 375-3148
Fan/Heatsink
370-5126/370-7786/371-0837
Tomatillo 2.3		 April 2003
375-3150
V210/V240		 0MB FRU
2 × 1.002GHz US IIIi		 Motherboard Assy 375-3148
Fan/Heatsink
370-5126/370-7786/371-0837
Tomatillo 2.3		 April 2003
375-3120
V240 only		 0MB FRU
2 × 1.280GHz US IIIi		 Motherboard Assy 375-3148
Fan/Heatsink
370-5126/370-7786/371-0837
Tomatillo 2.3		 October 2003

375-3248
V210/V240		 0MB FRU
1 × 1.002GHz US IIIi		 Motherboard Assy 375-3246
Fan/Heatsink
370-5126/370-7786/371-0837
Tomatillo 2.3		 March 2005
375-3249
V210/V240		 0MB FRU
2 × 1.002GHz US IIIi		 Motherboard Assy 375-3246
Fan/Heatsink
370-5126/370-7786/371-0837
Tomatillo 2.3		 March 2005
375-3247
V240 only		 0MB FRU
2 × 1.280GHz US IIIi		 Motherboard Assy 375-3246
Fan/Heatsink
370-5126/370-7786/371-0837
Tomatillo 2.3		 March 2005

375-3281
V240 only		 0MB FRU
2 × 1.280GHz US IIIi		 Motherboard Assy 375-3297
Fan/Heatsink
370-5126/370-7786/371-0837
Tomatillo 2.3		 March 2005

375-3225
V210/V240		 0MB FRU
1 × 1.336GHz US IIIi		 Motherboard Assy 375-3228
Fan/Heatsink
370-7016/370-7786/371-0837
Tomatillo 2.3		 November 2004
375-3226
V210 only		 0MB FRU
2 × 1.336GHz US IIIi		 Motherboard Assy 375-3228
Fan/Heatsink
370-7016/370-7786/371-0837
Tomatillo 2.3		 November 2004
375-3227
V240 only		 0MB FRU
2 × 1.503GHz US IIIi		 Motherboard Assy 375-3228
Fan/Heatsink
370-7016/370-7786/371-0837
Tomatillo 2.3		 November 2004

375-3344
V210/V240		 0MB FRU
1 × 1.336GHz US IIIi		 Motherboard Assy 375-3325
Fan/Heatsink 371-0837
Tomatillo 2.3		 December 2005
375-3345
V210 only		 0MB FRU
2 × 1.336GHz US IIIi		 Motherboard Assy 375-3325
Fan/Heatsink 371-0837
Tomatillo 2.3		 December 2005
375-3346
V240 only		 0MB FRU
2 × 1.503GHz US IIIi		 Motherboard Assy 375-3325
Fan/Heatsink 371-0837
Tomatillo 2.3		 December 2005

375-3465
V210/V240		 0MB FRU
1 × 1.336GHz US IIIi		 R06 Motherboard Assy 375-3459
Fan/Heatsink 371-0837
Tomatillo 2.3		 September 2006
375-3466
V210 only		 0MB FRU
2 × 1.336GHz US IIIi		 R06 Motherboard Assy 375-3459
Fan/Heatsink 371-0837
Tomatillo 2.3		 September 2006
375-3467
V240 only		 0MB FRU
2 × 1.503GHz US IIIi		 R06 Motherboard Assy 375-3459
Fan/Heatsink 371-0837
Tomatillo 2.3		 September 2006

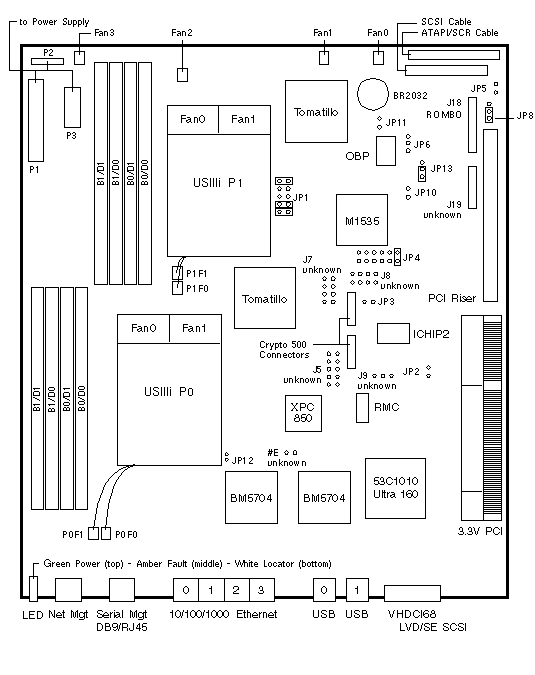

LOCATION PINS SETTING DESCRIPTION
JP1 1-2
3-4
9-10		 In
In
In		 1.4V Core VID[4:0] Bit 4 (00110)
1.4V Core VID[4:0] Bit 3 (00110)
1.4V Core VID[4:0] Bit 0 (00110)
JP2 1-2
1-2		 Out
In		 ALOM Flash Normal (default)
ALOM Flash Recovery
JP3 1-2
1-2		 Out
In		 ALOM Normal (default)
ALOM Reset
JP4 1-2 In 1.002GHz CONFIG[2:0] Bit 0 (110)
1-2
3-4		 In
In		 1.280GHz CONFIG[2:0] Bit 0 (100)
1.280GHz CONFIG[2:0] Bit 1 (100)
5-6 In 1.336GHz CONFIG[2:0] Bit 2 (011)
1-2
5-6		 In
In		 1.503GHz CONFIG[2:0] Bit 0 (010)
1.503GHz CONFIG[2:0] Bit 2 (010)
JP5 1-2
1-2		 Out
In		 ATAPI Master - CSEL Open (default)
ATAPI Slave - CSEL Grounded
JP6 1-2
2-3		 In/Out
In		 OBP Flash Select (default)
ROMBO Select
JP8 1-2
2-3		 In
In		 Normal CMOS (default)
Clear CMOS
JP10 1-2
1-2		 Out
In		 Normal PS_ON# (default)
PS_ON# Override
JP11 1-2
1-2		 Out
In		 OBP Flash Write Enabled (default)
OBP Flash Write Protected
JP12 1-2
1-2		 Out
In		 ALOM Console Normal (default)
ALOM Console Bypass
JP13 1-2
2-3		 In/Out
In		 OBP Flash Normal (default)
OBP Flash Recovery

Device Paths

PCI Card Slots: 0 33/66MHz /pci@1d,700000/<device>@1
1 (V240 only) 33MHz /pci@1e,600000/<device>@3
2 (V240 only) 33MHz /pci@1e,600000/<device>@2
Onboard Gigabit
Ethernet Ports:		 BGE0 /pci@1f,700000/network@2
BGE1 /pci@1f,700000/network@2,1
BGE2 /pci@1d,700000/network@2
BGE3 /pci@1d,700000/network@2,1
Internal SCSI
Hard Drives:		 Target 0 /pci@1c,600000/scsi@2/sd@0
Target 1 /pci@1c,600000/scsi@2/sd@1
Target 2 (V240 only) /pci@1c,600000/scsi@2/sd@2
Target 3 (V240 only) /pci@1c,600000/scsi@2/sd@3
External SCSI Port: /pci@1c,600000/scsi@2,1
IDE Controller (for DVD-ROM): /pci@1e,600000/ide@d
USB Controller: /pci@1e,600000/usb@a
Serial Port Controller: /pci@1e,600000/serial@0
Environmental Bus (I2C): /pci@1e,600000/i2c@0
System/ALOM Comm: /pci@1e,600000/isa@7/rmc-comm@0

Sun Fire V210 Codename: Enchilada 1U
Sun Fire V240 Codename: Enchilada 2U

Notes

  1. The minimum operating system for 1.002GHz and 1.280GHz is Solaris 8 12/02.
    The minimum operating system for 1.336GHz and 1.503GHz is Solaris 8 7/03 with patch 109885-15 or later, Solaris 9 12/03, or Solaris 10.
  2. ALOM update is available at Firmware Downloads.
  3. The JBUS clock is 167MHz and the Memory clock is 111.33MHz with 1.002GHz CPUs.
  4. The JBUS clock is 160MHz and the Memory clock is 128MHz with 1.280GHz CPUs.
  5. The JBUS clock is 167MHz and the Memory clock is 111MHz with 1.336GHz CPUs.
  6. The JBUS clock is 167MHz and the Memory clock is 125MHz with 1.503GHz CPUs.

Memory Notes

  1. Bank, Rank, DIMM, and XOR Interleaving is supported.
  2. UltraSPARC IIIi supports single bank and dual bank DDR DIMMs.
  3. Two DIMMs of the same bank size (single or dual) and memory size form a bank.
  4. The minimum requirement is two DIMMs in any Bank (B0/D0/D1 or B1/D0/D1).
  5. Only CPU 0 DIMMs are accessible in a single CPU system (CPU 0).
  6. Memory is mapped globally and is accessible by either CPU in a dual-CPU system.
  7. Memory error reporting identifies a failing Bank, not a single failing DIMM.

Motherboard Notes

  1. The DB9 IOIOI serial port requires an EMI gasket.
  2. Motherboards 375-3107, 375-3148, 375-3246, 375-3297, 375-3228, 375-3325, and 375-3459 are without Memory or UltraSPARC IIIi.
  3. Motherboard FRUs include Motherboard assembly, US IIIi, and Fan/Heatsink.
    Part numbers are shown in subheaders above.
  4. Fan/Heatsink FRU F370-5126 includes Fan 370-5126 or 370-7786.
  5. Fan/Heatsink 370-5126 is not qualified for use with Motherboard 375-3228.
  6. Fan/Heatsink 370-7016 is not available as a FRU.
  7. Fan/Heatsink 371-0831 became a secondary source in assemblies using 370-5126, 370-7016, or 370-7786 in February 2006. (WO_32531)
  8. Motherboard replacement requires a 3/16 Hex driver, #2 Phillips driver, and a Slotted driver with a maximum thickness of 0.660 mm (0.026").
  9. An alternate source for the AMD 29F016 Flash PROM was added in November 2004.
    The Macronix 29F016 Flash PROM requires OBP 4.13v2 and ALOM 1.4.
  10. The procedure for replacing the heatsink on V210 and V240 with >= 1.5GHz CPU speeds has changed.
    See 817-4048 below.

References

  1. Sun Fire V210 Server Documentation.
  2. Sun Fire V240 Server Documentation.
