System Control Peripheral Assembly

501-5418	540-4813
FRU Assembly w/o Disks/DVD/Tape	Manufacturing Assembly w Disk Drives/DVD/Tape

Notes

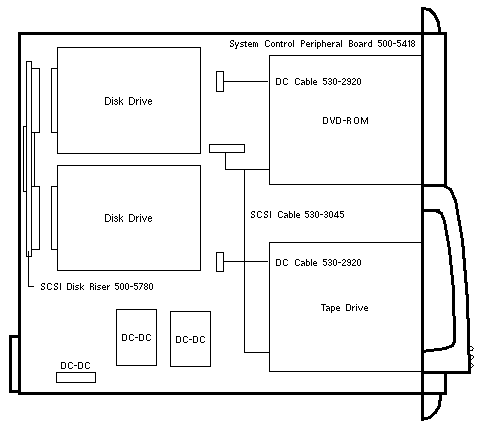

1. Two disk drives, one tape drive, and one DVD-ROM are installed on the System Control Peripheral Board.
   These components were formerly contained in Drives Kit 565-1569, but are now included in the 540-4813 assembly..
2. System Control Board slots are labeled SC0 and SC1.
3. System Control Peripheral slots are labeled SCPER0 and SCPER1.

References

1. Sun Fire 12K Server Documentation.
2. Sun Fire 15K Server Documentation.
3. Sun Fire E20K Server Documentation.
4. Sun Fire E25K Server Documentation.
