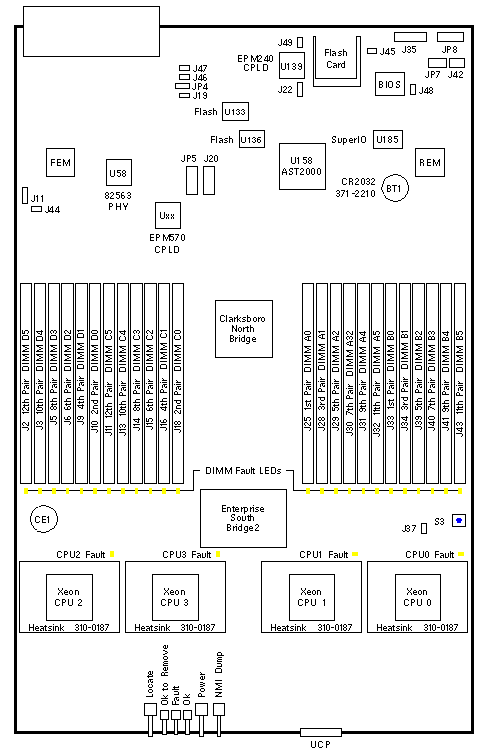

Sun Blade X6450
| 375-3564 |
540-7595 |
X6450-AA |
|
System Board |
System Board FRU
375-3564 + Tray
w/o Processors
w/o Heatsinks |
X6450 Base
599-3506
w/o Processors
w/o Heatsinks |
| 594-5397 |
594-5398 |
594-5399 |
594-5400 |
X6450-44L1860-82
16GB 2.93GHz
4x Xeon E7220 |
X6450-44M2130-82
16GB 1.86GHz
4x Xeon L7345 |
X6450-44M2400-B2
16GB 2.13GHz
4x Xeon E7320 |
X6450-42M2930-82
32GB 2.40GHz
4x Xeon E7340 |
Headers, Jumpers, LEDs, and Switches
| LOCATION |
PINS |
SETTING |
DESCRIPTION |
| J11 |
4 |
Out |
Unknown |
| J19 |
2 |
Out |
Unknown |
| J22 |
2 |
Out |
Unknown |
| J23 |
2 |
Out |
Unknown |
| J35 |
20 |
Out |
Unknown |
| J37 |
2 |
Out |
Unknown |
|
J42
|
1-3 |
In |
NVRAM Clear |
| 3-5 |
Jumper storage position (default) |
| 2-4 |
Password Enable |
| 4-6 |
Jumper storage position (default) |
| J44 |
2 |
Out |
Unknown |
| J45 |
2 |
Out |
Unknown |
| J46 |
2 |
Out |
Unknown |
| J47 |
2 |
Out |
Unknown |
| J48 |
2 |
Out |
Unknown |
| J49 |
2 |
Out |
Unknown |
| JP4 |
2-3 |
In |
Unknown (default) |
| JP5 |
4 |
NA |
Unknown connector |
| JP7 |
10 |
NA |
Unknown connector |
| JP8 |
14 |
NA |
Unknown connector |
|
Sun Blade X6450 Codename: Hercules |
Notes
- The FRU does not include CPUs, Disks, Heatsinks, or Memory.
- Thermal Grease 310-0065 is included with the System Board FRU.
- Heatsink 310-0187 is pre-greased with Shin-Etsu X23-7783D (310-0065).
- Heatsink 310-0187 is not available as a FRU.
- Press Fault Remind button S3 to illuminate the CPU and DIMM fault LEDs.
- Install DIMMs in pairs of two beginning with A0/B0.
Chassis Notes
- The X6450 is supported in the Sun Blade 6000 A90-A, A90-B, and Sun Blade 6048.
- The X6450 is not supported in the Sun Blade 6000 A90-D.
System Software 3.1 Notes
- Sun Blade X6450 components at U36, U79, U89, and U208 sourced from ADV are
labeled M4T and components sourced from Maxim are labeled 818A.
- Dual Fibre Channel Dual Gigabit Ethernet PCI Express ExpressModule 371-4017
may looses ports after upgrading to X6450 Software 3.1 if the blade was built before
April 2009 and components at U36, U79, U89, and U208 are labeled M4T.
(Refer to BugID 15674626 [SUNBT6991682] and GSAP 6014)
References
Sun Blade X6450 Server Module Documentation.

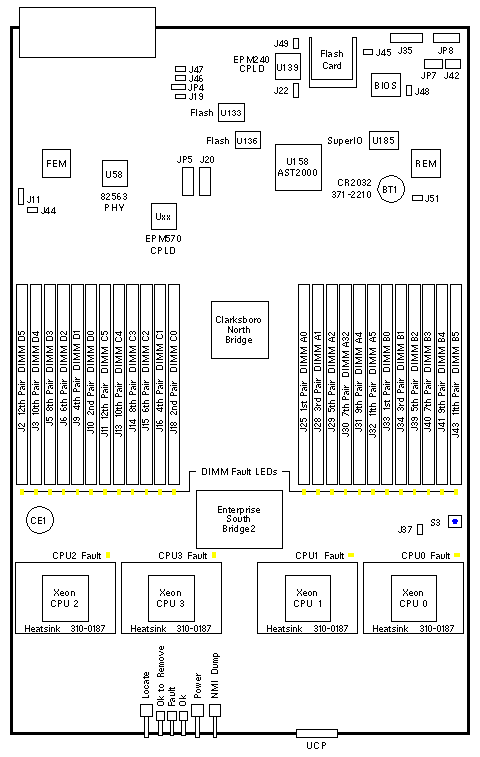

Sun Blade X6450
| 375-3601 |
540-7821 |
X6450-AB |
|
System Board |
System Board FRU
375-3601 + Tray
w/o Processors
w/o Heatsinks |
X6450 Base
599-3548
w/o Processors
w/o Heatsinks |
| 594-5766 |
594-5767 |
594-5768 |
594-5769 |
X6450-44L2131-82
16GB 2.13GHz
4x Xeon E7445 |
X6450-46L2131-82
16GB 2.13GHz
4x Xeon L7455 |
X6450-44M2401-82
16GB 2.40GHz
4x Xeon E7400 |
X6450-46M2401-B2
32GB 2.40GHz
4x Xeon E7450 |
Headers, Jumpers, LEDs, and Switches
| LOCATION |
PINS |
SETTING |
DESCRIPTION |
| J11 |
4 |
Out |
Unknown |
| J19 |
2 |
Out |
Unknown |
| J22 |
2 |
Out |
Unknown |
| J23 |
2 |
Out |
Unknown |
| J35 |
20 |
Out |
Unknown (not installed) |
| J37 |
2 |
Out |
Unknown |
|
J42
|
1-3 |
In |
NVRAM Clear |
| 3-5 |
Jumper storage position (default) |
| 2-4 |
Password Enable |
| 4-6 |
Jumper storage position (default) |
| J44 |
2 |
Out |
Unknown |
| J45 |
2 |
Out |
Unknown |
| J46 |
2 |
Out |
Unknown |
| J47 |
2 |
Out |
Unknown |
| J48 |
2 |
Out |
Unknown |
| J49 |
2 |
Out |
Unknown |
| J51 |
2-3 |
In |
Unknown (default) |
| JP4 |
2-3 |
In |
Unknown (default) |
| JP5 |
4 |
NA |
Unknown connector |
| JP7 |
10 |
NA |
Unknown connector (not installed) |
| JP8 |
14 |
NA |
Unknown connector |
|
Sun Blade X6450 Codename: Hercules 2.0 Mojo |
Notes
- The FRU does not include CPUs, Disks, Heatsinks, or Memory.
- Press Fault Remind button S3 to illuminate the CPU and DIMM fault LEDs.
- Install DIMMs in pairs of two beginning with A0/B0.
- System Board 375-3601 supports Low Voltage DIMMs and Solid-State Drives.
Chassis Notes
- The X6450 is supported in the Sun Blade 6000 A90-A, A90-B, and Sun Blade 6048.
- The X6450 is not supported in the Sun Blade 6000 A90-D.
References
-
Sun Blade X6450 Server Module Documentation.
|
