| 541-4078 |
541-4079 |
511-1418 |
Unconfigured Assembly
with 541-4079
X6270-AB |
Subassembly
with 511-1418 |
System Board
FAB 271-1418 |
| 7049978 |
7049976 |
7049974 |
Unconfigured Assembly
with 7049976
X6270-AB |
Subassembly
with 7049974 |
System Board
FAB 271-1418 |
| 7318834 |
7318833 |
7318832 |
Unconfigured Assembly
with 7318833 |
Subassembly
with 7318832 |
System Board
FAB 271-1418 |
| 7321291 |
7321439 |
7321438 |
Unconfigured Assembly
with 7321439 |
Subassembly
with 7321438 |
System Board
FAB 271-1418 |

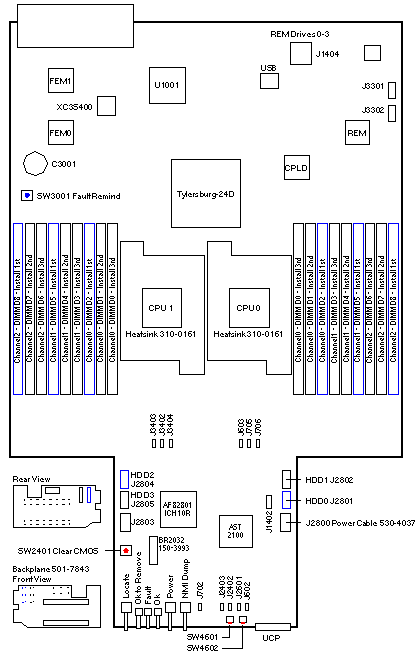

Headers, Jumpers and Switches
| LOCATION |
PINS |
SETTING |
DESCRIPTION |
| J602 |
1-2 |
Out |
Not documented |
| J603 |
1-2 |
Out |
Not documented |
| J702 |
1-2 |
Out |
Not documented |
| J705 |
1-2 |
Out |
Not documented |
| J706 |
1-2 |
Out |
Not documented |
| J2402 |
1-2 |
In |
Not documented |
| J2403 |
1-2 |
In |
Not documented |
| J3402 |
1-3 |
Out |
Not documented |
| J3403 |
1-3 |
Out |
Not documented |
| J3404 |
1-3 |
Out |
Not documented |
| J2601 |
2 |
Out |
Unknown Header |
| J1402 |
5 |
n/a |
REM battery connector |
| J3301 |
10 |
n/a |
CPLD Program Header |
| J3302 |
10 |
n/a |
CPLD Debug Header |
| SW2401 |
n/a |
n/a |
Clear CMOS Button |
| SW3001 |
n/a |
n/a |
Fault Remind Button |
| SW4601 |
n/a |
n/a |
Unknown Button |
| SW4602 |
n/a |
n/a |
Unknown Button |
Sun Blade X6270 M2 Server Module Codename: Virgo+
Netra X6270 M2 Server Module Codename: Virgo+-LP |
Notes
- The minimum Solaris operating system is Solaris 10 10/09.
- Heatsink FRU 541-2545 includes Heatsink 310-0161, two 240-6751 SpringScrews,
one 250-1802 Cleaning Wipe and one 310-0065 Shin-Etsu X23-7783D Thermal
Grease Syringe. Heatsink 310-0161 is pre-greased with Shin-Etsu G751.
- The System Board CRU/FRU includes two 250-1802 Cleaning Wipes, and
two 310-0065 Shin-Etsu X23-7783D Thermal Grease Syringes.
- SW 1.1.1 is required to support Intel X5675 and X5690 processors.
Chassis Notes
- The X6270 M2 is supported in Sun Blade 6000 A90-A, A90-B, and A90-D.
- The X6270 M2 is not supported in Sun Blade 6048.
Memory Installation Notes
- Install memory filler panel 350-1288 in all unused slots.
- Install the first DIMMs in CPU0 and CPU1 slots D8, D5, and D2.
- Install the second DIMMs in CPU0 and CPU1 slots D7, D4, and D1.
- Install the third DIMMs in CPU0 and CPU1 slots D6, D3, and D0.
- Memory speed is dependent on the number of DIMMs and the CPU Front Side Bus.
- Maximum speed is 1333MHz when 1333MHz DIMMs are installed in D8, D5, and D2.
- Maximum speed is 1066MHz when two DIMMs of any speed are installed
per channel.
- Maximum speed is 800MHz when three DIMMs of any speed are installed
per channel.
- Use of the same DIMM size and speed is recommended for maximum performance.
Cable Notes
- ATO Option 4859A includes four 530-3993 data cables.
- ATO Option 4860A includes one 530-4376 data cable.
- PTO option 7101047 includes four 530-3993 data cables
and one 530-4376 data cable.
- Cable Kit 542-0376 includes four 530-3993 and one 530-4376.
- Cable 530-4376 has one SFF-8087 to four SATA connectors.
References
 Sun Blade X6270 M2 Server Module Documentation.
- Sun Netra X6270 M2 Server Module Documentation.
|
