375-3558-01	540-7676	X6240-AA
System Board	Assembly/FRU 375-3558-01 + Enclosure	X6240 Base 540-7676
594-5567	594-5618	594-5382
8GB 1.9GHz Opteron 2347HE X6240-24L1900-42	16GB 2.1GHz Opteron 2352 X6240-24M2100-42	16GB 2.3GHz Opteron 2356 X6240-24M2300-82
594-5966	594-5964	594-5965
8GB 2.3GHz Opteron 2376HE X6240-24L2301-42	8GB 2.5GHz Opteron 2380 X6240-24M2501-42	16GB 2.7GHz Opteron 2384 X6240-24M2701-82

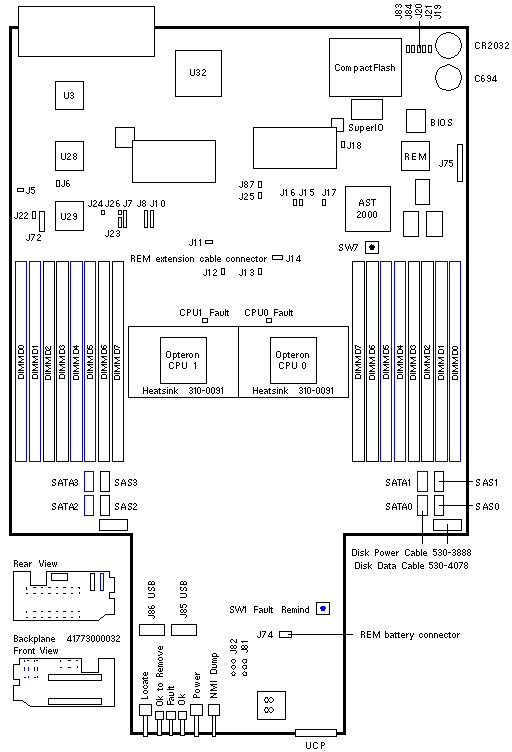

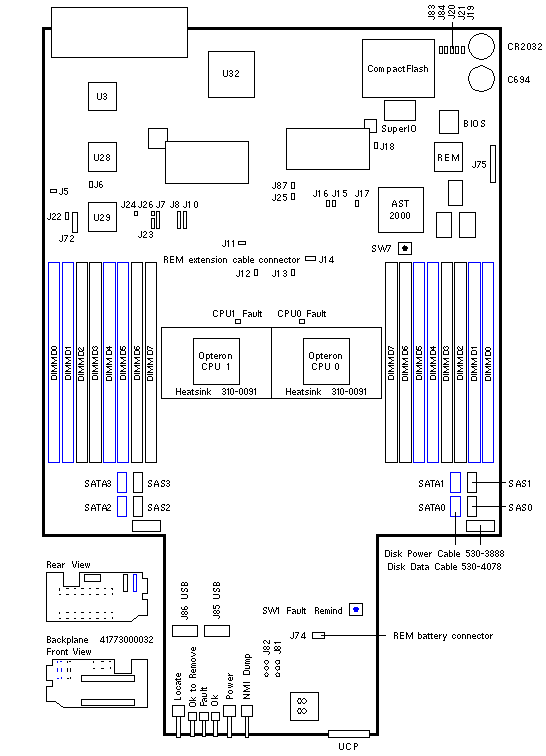

Headers and Jumpers

LOCATION	PINS	SETTING	DESCRIPTION
J5 J6	2	Out	Not documented
J7 J8 J10	6	Out	Not documented
J11 J12 J13	2	Out	Not documented
J15	3	Out	I2C 2nd Bus
J16	1-2	In	Normal CMOS (2-3 = Clear CMOS)
J17	3	Out	I2C Main Bus
J18	3	Out	Not documented
J19	2-3	In	Normal Password (1-2 = Clear SP Password)
J20	1-2	Out	Write Protect (default)
J21	2-3	In	Enable ARM (1-2 = Disable ARM)
J22	2-3	In	Program by ILOM (default)
J23	4	Out	Not documented
J24 J25	2	Out	Not documented
J26	2	n/a	Not documented (not stuffed)
J72	16	n/a	Power Debug Header
J75	20	n/a	BMC JTAG Header
J81	1-2	In	Normal (default)
J82	2-3	In	Normal (default)
J83	1-2	Out	SP Manfacturing Mode (default)
J84	1-2	Out	SP TRST (default)
J87	2	Out	Not documented
SW1	n/a	n/a	CPU and DIMM Fault Locate Button
SW7	n/a	n/a	Not documented

Sun Blade X6240 Server Module Codename: Gemini+

Notes

1. The minimum Solaris operating system is Solaris 10 5/08.
2. Press Fault Locate button SW1 to illuminate the CPU and DIMM fault LEDs.
3. The CRU/FRUs includes Disk Backplanes, Cables, System Board, Enclosure, and Cover.
4. The CRU/FRUs does not include CPUs, Disks, Heatsinks, or Memory.
5. Thermal Grease 310-0065 is included with the Heatsink and System Board FRUs.
6. Heatsink 310-0091 is pre-greased with ShinEtsu G751 (310-0049).
7. Install DIMMs in D0/D1, then D2/D3, D4/D5, and D6/D7.

Chassis Notes

1. The X6240 is supported in Sun Blade 6000 A90-A, A90-B, and Sun Blade 6048.
2. The X6240 is not supported in Sun Blade 6000 A90-D.

Disk Backplane Notes

1. The 2-Slot Disk Backplane has no part number and is not available as a FRU.
2. There is no Disk Backplane cable kit for the Sun Blade X6240.
3. Use the system board SAS connectors for SAS/SATA/SSD drives connected to any REM.
4. Use the system board SATA connectors for SATA/SSD drives connected without a REM.

References

1. Sun Blade X6240 Server Module Documentation.

Sun Blade X6240 Server Module Codename: Gemini+

Notes

1. The minimum Solaris operating system is Solaris 10 5/08.
2. Press Fault Locate button SW1 to illuminate the CPU and DIMM fault LEDs.
3. CRU/FRUs includes Disk Backplanes, Cables, System Board, Enclosure, and Cover.
4. CRU/FRUs does not include CPUs, Disks, Heatsinks, or Memory.
5. Thermal Grease 310-0065 is included with the Heatsink and System Board FRUs.
6. Heatsink 310-0091 is pre-greased with ShinEtsu G751 (310-0049).
7. Install DIMMs in D0/D1, then D2/D3, D4/D5, and D6/D7.

Chassis Notes

1. The X6240 is supported in Sun Blade 6000 A90-A, A90-B, and Sun Blade 6048.
2. The X6240 is not supported in Sun Blade 6000 A90-D.

Disk Backplane Notes

1. The 2-Slot Disk Backplane has no part number and is not available as a FRU.
2. There is no Disk Backplane cable kit for the Sun Blade X6240.
3. Use the system board SAS connectors for SAS/SATA/SSD drives connected to any REM.
4. Use the system board SATA connectors for SATA/SSD drives connected without a REM.

References

1. Sun Blade X6240 Server Module Documentation.

Sun Blade X6240 Server Module Codename: Gemini+ HT3

Notes

1. The minimum Solaris operating system is Solaris 10 5/08.
2. X6240-AB is required to support AMD 6-core Opteron 2400 series processors.
3. System Board 542-0141 supports 8GB DIMMs and utilizes cHT3 (Coherent HyperTransport 3.0) technology.
4. Press Fault Locate button SW1 to illuminate the CPU and DIMM fault LEDs.
5. The CRU/FRUs includes Disk Backplanes, Cables, System Board, Enclosure, and Cover.
6. The CRU/FRUs does not include CPUs, Disks, Heatsinks, or Memory.
7. Thermal Grease 310-0065 is included with the Heatsink and System Board FRUs.
8. Heatsink 310-0091 is pre-greased with ShinEtsu G751 (310-0049).
9. Install DIMMs in D0/D1, then D2/D3, D4/D5, and D6/D7.

Chassis Notes

1. The X6240 is supported in Sun Blade 6000 A90-A, A90-B, and Sun Blade 6048.
2. The X6240 is not supported in Sun Blade 6000 A90-D.

Disk Backplane Notes

1. The 2-Slot Disk Backplane has no part number and is not available as a FRU.
2. There is no Disk Backplane cable kit for the Sun Blade X6240.
3. Use the system board SAS connectors for SAS/SATA/SSD drives connected to any REM.
4. Use the system board SATA connectors for SATA/SSD drives connected without a REM.

References

1. Sun Blade X6240 Server Module Documentation.
