SPARCstation 4

501-2860	501-2861	501-2862	501-3002
70MHz 16MB	70MHz 0MB FAB 270-2549	70MHz 32MB	70MHz 0MB FRU FAB 270-2928

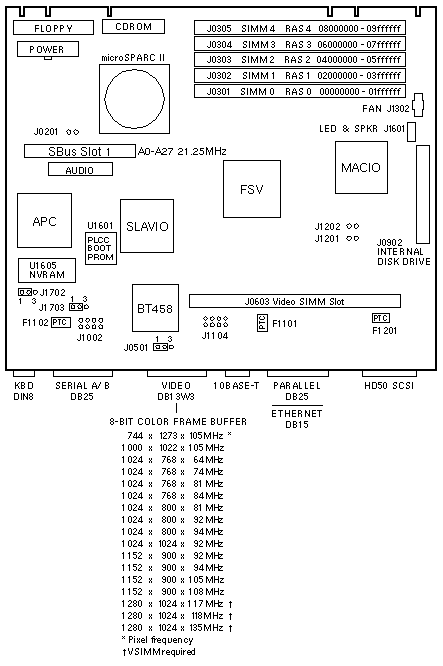

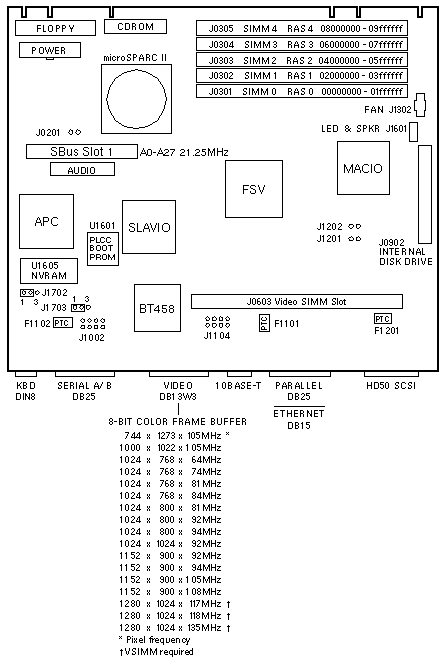

Jumper Settings

JUMPER PINS SETTING DESCRIPTION J0201 1-2 Out Pin-1=Gnd / Pin-2=POK J1002 1-2 3-4 5-6 7-8 Out Out Out Out Test point rxda Test point txda Test point rxdb Test point txdb J1104 1-2 3-4 5-6 7-8 Out Out Out Out Test point tpe<0> Test point tpe<1> Test point tpe<2> Test point tpe<3> J1201 1-2 1-2 Out* In 1= normal 0= -4.5db J1202 1-2 1-2 Out* In 1=100 Ohm 0=150 Ohm J1702 J1703 J1702 J1703 1-2 1-2 2-3 2-3 In* In* In In Select RS-423 Select RS-423 Select RS-232 (+12V) Select RS-232 (-12V)

* Default setting

Notes

1. The minimum OS is Solaris 1.1.2 or Solaris 2.4 Hardware: 11/94.
2. The PLCC Boot PROM is not a FRU and is not field replaceable.
3. Serial Port B supports asynchronous operation only.
4. Sync on green produces a higher than normal green output level when the tcx frame buffer is connected to the 16-inch Sony Mid-Range and 17-inch Nokia Entry-Level Color Monitors. Refer to BugID 14902389 [SUNBT1218690].
5. OBP settings for the SS4 tcx framebuffer use the Pixel frequency instead of the Vertical frequency.
6. Use the OBP setenv command to change the frame buffer resolution:


   ok setenv fcode-debug? true

   ok reset

   ok setenv output-device screen:r1152x900x94

   ok setenv output-device screen:r1024x768x84
