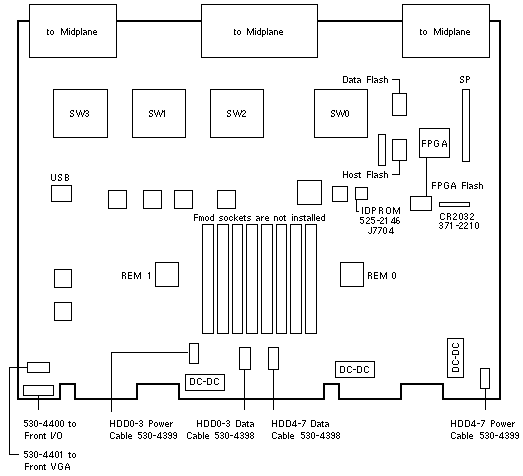

Main Module
| 7021098 |
541-4695 |
7013691 |
|
Main Module |
Manufacturing Assembly |
Service Assembly |
| 7041063 |
7041488 |
7041481 |
|
Main Module |
Manufacturing Assembly |
Service Assembly |
| 7046812 |
7048937 |
7048938 |
|
Main Module |
Manufacturing Assembly |
Service Assembly |
Jumpers and Switches
| LOCATION |
PINS |
SETTING |
DESCRIPTION |
| J7501 |
3 |
1-2 |
Normal Operation |
| J7501 |
3 |
2-3 |
Clear SP Password (temporary setting) |
Notes
- The minimum Solaris operating system is Solaris 10 08/11.
Main Module (System Board) Notes
- The Service Processor is not included with the Main Module FRU.
- The RAID Expansion Module is not included with the Main Module FRU.
- The Front I/O Assembly and cables are not included with the Main Module FRU.
- The Disk Backplanes and cables are not included with the Main Module FRU.
References
 SPARC T4-4 Server Documentation.
|
