7019372	7019409	7015272
System Board Subassembly w/o UltraSPARC T4 w/o Enclosure	System Board Assembly w/o Enclosure	System Board Assembly 8-Core 2.85GHz

7046437	7050463	7050464
System Board Subassembly w/o UltraSPARC T4 w/o Enclosure	System Board Assembly w/o Enclosure	System Board Assembly 8-Core 2.85GHz

Notes

1. Solaris 10 10/09 is supported with the complete Solaris 10 8/11 bundle.
2. Solaris 10 9/10 is supported with the complete Solaris 10 8/11 bundle.
3. Disk power and data cables are molded into Backplane Assembly 530-4375.

Chassis Notes

1. The T4-1B is supported in Sun Blade 6000 A90-B and A90-D.
2. The T4-1B is not supported in Sun Blade 6000 A90-A or Sun Blade 6048.
3. The T4-1B in the A90-B Chassis is only supported with the T6320, T6340,
   T3-1B, X6270, X6270 M2, X6275 M2-GbE, and Storage Module M2.

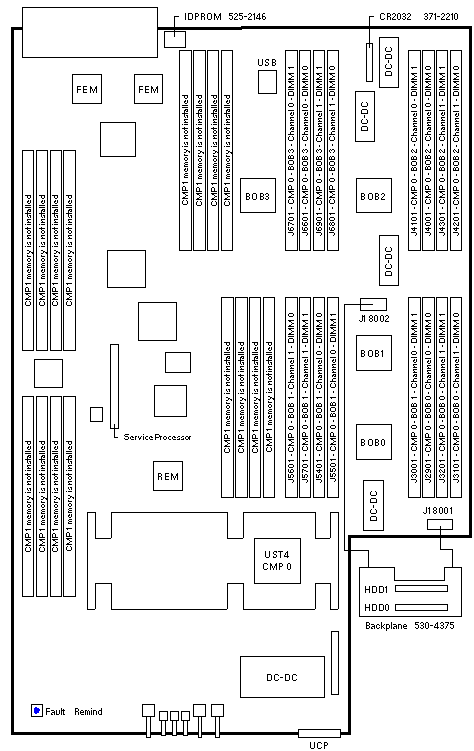

Memory Installation Notes

1. Install the first four DIMMs in all Channel 1 DIMM 0 slots.
2. Install the next four DIMMs all Channel 0 DIMM 0 slots.
3. Install the next eight DIMMs in the remaining slots.
4. Mixing DIMM sizes is not supported.

UltraSPARC Notes

1. Firmware 8.2.2.b is required to support UltraSPARC T4 Version 1.3.
2. Firmware 8.2.2.b was added to 7050464 in January 2013. (M0004092)
3. UltraSPARC T4 Version 1.3 was added to 7050463 in December 2012. (E0013847)

References

1. SPARC T4-1B Server Module Documentation
