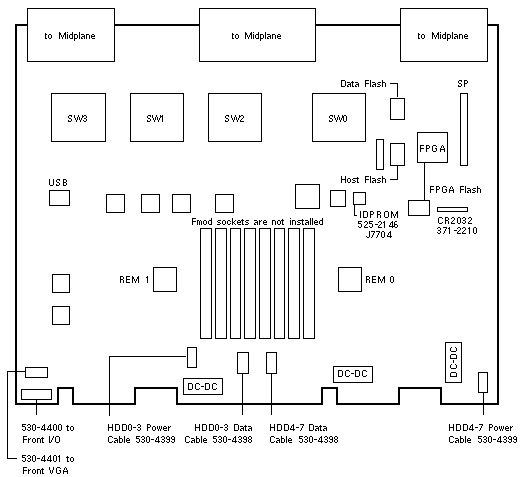

Main Module

511-1361 541-4183 541-4260
Main Module
w/o Disk BP 541-4257
w/o SP 541-4258
w/o Front I/O 541-4259
w/o REM 375-3643		 Main Module Assembly
with Disk BP 541-4257
with SP 541-4258
with Front I/O 541-4259
with REM 375-3643		 Main Module FRU
w/o Disk BP 541-4257
w/o SP 541-4258
w/o Front I/O 541-4259
w/o REM 375-3643

Jumpers and Switches

LOCATION PINS SETTING DESCRIPTION
J7501 3 1-2 Normal Operation
J7501 3 2-3 Clear SP Password (temporary setting)

Notes

  1. The minimum OS is Solaris 10 10/09 with the complete Solaris 10 9/10 bundle.

Main Module (System Board) Notes

  1. The Service Processor is not included with the Main Module FRU.
  2. The RAID Expansion Module is not included with the Main Module FRU.
  3. The Front I/O Assembly and cables are not included with the Main Module FRU.
  4. The Disk Backplanes and cables are not included with the Main Module FRU.

References

  1. SPARC T3-4 Server Documentation.
