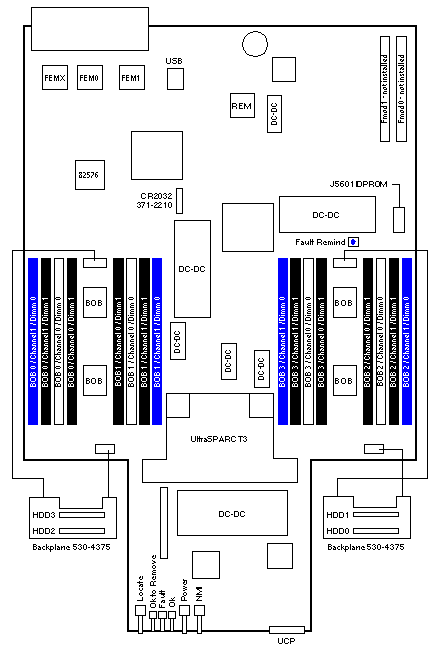

SPARC T3-1B System Board

511-1315	541-4245	541-4243	597-0747
System Board w/o Enclosure Inactive October 2011	System Board Assy 8-Core 1.65GHz Inactive October 2011	System Board FRU 8-Core 1.65GHz Inactive October 2011	8-Core 1.65GHz Assembly 541-4197 T31B-AA181650
511-1315	541-3888	541-4197	597-0644
System Board w/o Enclosure Inactive October 2011	System Board Assy 16-Core 1.65GHz Inactive October 2011	System Board FRU 16-Core 1.65GHz Inactive October 2011	16-Core 1.65GHz Assembly 541-4197 T6360-AA-1A1600

7027075	7027106	7027111	597-0747
System Board w/o Enclosure	System Board Assy 8-Core 1.65GHz	System Board FRU 8-Core 1.65GHz Pkg FRU 7027112	8-Core 1.65GHz Assembly 541-4197 T31B-AA181650
7027075	7027087	7027108	597-0644
System Board w/o Enclosure	System Board Assy 16-Core 1.65GHz	System Board FRU 16-Core 1.65GHz Pkg FRU 7027109	16-Core 1.65GHz Assembly 541-4197 T6360-AA-1A1600

SPARC T3-1B Codename: Jumilla

Notes

1. The minimum Solaris OS is Solaris 10 10/09 with the complete Solaris 10 9/10 bundle.
2. SAS-1 expanders require minimum firmware 5.04.03 before the T3-1B is installed.
3. The prtdiag Chassis Serial Number is the Sun Blade 6000 serial number. (CR 6669159)
4. Disk power and data cables are molded into Backplane Assembly 530-4375.

Chassis Notes

1. The T3-1B is supported in Sun Blade 6000 A90-A, A90-B, and A90-D.
2. Sun Blade 6000 Midplane 501-7376 supports PCI Express 1.1.
3. Sun Blade 6000 Midplane 511-1298 and 511-1487 support PCI Express 2.0.
4. The Sun Blade 6000 Midplane upgrade was A90-B-MP-UPGKIT.
5. The last order date for A90-B-MP-UPGKIT was 03/14/11.
6. The T3-1B is not supported in Sun Blade 6048.

Memory Installation Notes

1. Install the first four DIMMs in the blue slots.
2. Install the second four DIMMs in the white slots.
3. Install the last eight DIMMs in the black slots.

References

1. SPARC T3-1B Server Product Notes
2. SPARC T3-1B Server Installation Guide
3. SPARC T3-1B Server Service Manual
4. SAS-1/SAS-2 Compatibility Upgrade Guide

Netra SPARC T3-1B Codename: Netra Jumilla

Notes

1. The minimum Solaris OS is Solaris 10 10/09 with the complete Solaris 10 9/10 bundle.
2. Disk power and data cables are molded into Backplane Assembly 530-4375.
3. The NEBS certified Netra SPARC T3-1B is a modified Sun Blade T3-1B with unique
   FRUID and ILOM. Do NOT use Sun Blade T3-1B to replace Netra SPARC T3-1B.
4. The T3-1B is supported in the Netra 6000 M2.
5. The T3-1B is not supported in the Netra 6000.

Memory Installation Notes

1. Install the first four DIMMs in the blue slots.
2. Install the second four DIMMs in the white slots.
3. Install the last eight DIMMs in the black slots.

References

1. Netra SPARC T3-1B Documentation.
