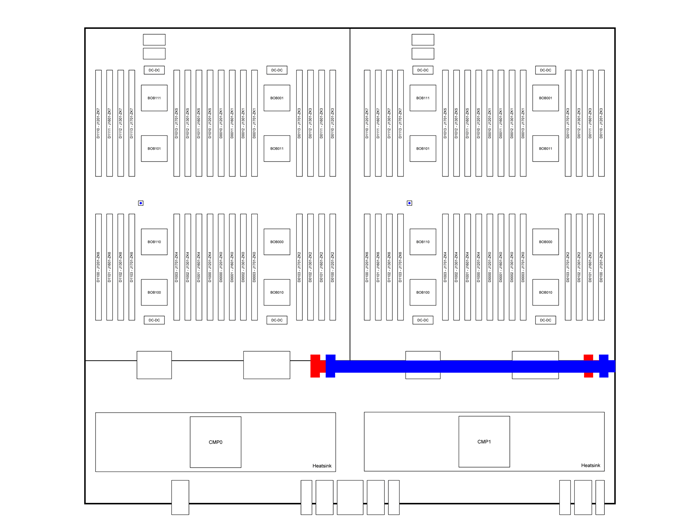

SPARC M5-32 CPU/Memory Unit

7061366	7057504	7066443
CPU Board Assembly CPU Board 7047568	Memory Board Assembly Memory Board 7047493	CPU/Memory Assembly 7061366 + 7057504

Zoom

Quarter Populated Memory

Half Populated Memory

Notes

1. The minimum Solaris operating system is Solaris 11.1.
2. Oracle Solaris 10 1/13 (using Oracle Solaris guest domains).
3. The M5-32 CPU/Memory Unit can be used in the M6-32.
4. All CPU/Memory Units within a DCU must be the same, either M5-32 or M6-32.
5. Do not remove more than one CPU Memory Unit at a time.
6. A fully populated CPU Memory Unit weighs 56Lbs (25.5Kg).

Memory Installation Notes

1. All DIMMs on a CPU Memory Unit must have the same memory capacity.
2. One quarter, one half, and fully populated DIMM configurations are supported.

References

1. SPARC M5-32 Server Documentation.
