SPARC Enterprise T5440

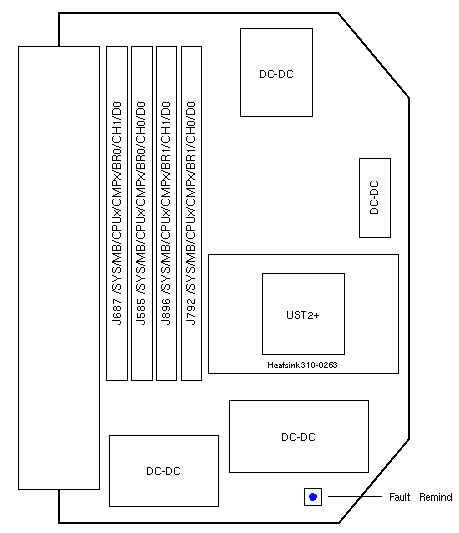

8-Core 1.2GHz CPU/Memory Module

501-7941	541-2754
8-Core 1.2GHz CPU/Memory FAB 270-7784	8-Core 1.2GHz CPU/Memory FRU

SPARC Enterprise T5440 Codename: Batoka 4U

Notes

1. The minimum configuration is four FB-DIMMs on the CPU/Memory board.
2. All FBDIMMs within a single CPU/Memory module must have the same memory size.
3. FBDIMMs on different CPU/Memory modules can be of different sizes.
4. Mixing DDR2-667 and DDR2-800 Memory Modules is not supported.
5. DDR2-800 Memory Modules are not compatible with 1.2GHz or 1.4GHz CPU Modules.

References

1. SPARC Enterprise T5440 Server Product Notes.
2. SPARC Enterprise T5440 Server Installation and Setup Guide.
3. SPARC Enterprise T5440 Server Service Manual.
