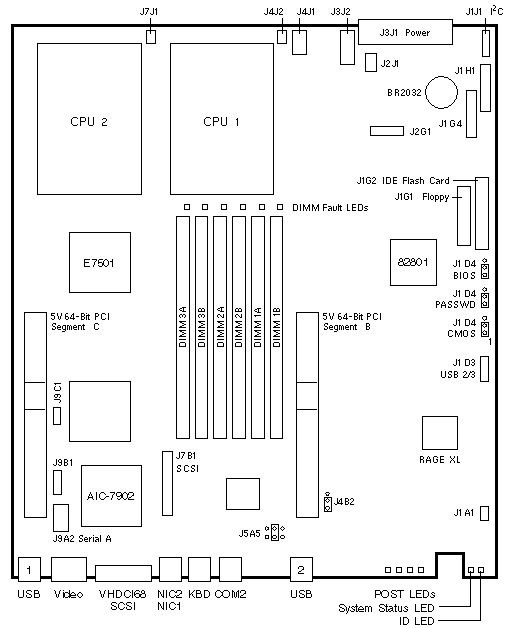

| LOCATION |
PINS |
SETTING |
DESCRIPTION |
| J1A1 |
2 |
NA |
HDD LED - not used |
| J1D3 |
10 |
NA |
USB Cable to LDC Module and Operator Panel |
| J1G1 |
34 |
NA |
Floppy - not used |
| J1G2 |
40 |
NA |
IDE - 256MB Flash Card 375-3214 |
| J1G4 |
34 |
NA |
Front Panel - not used |
| J1H1 |
24 |
NA |
NMI/RST/LED - not used |
| J1J1 |
5 |
NA |
I2C to Power Distribution Board |
| J2G1 |
6 |
NA |
Floppy/Front Panel/IDE |
| J2J1 |
6 |
NA |
Fan Tray Power |
| J3J1 |
24 |
NA |
Power to Power Distribution Board |
| J3J2 |
12 |
NA |
Fan Tray Power |
| J4J1 |
8 |
NA |
12V to Power Distribution Board |
| J4J2 |
2 |
NA |
CPU1 Fan - not used |
| J7A2 |
2 |
NA |
Chassis Int - not used |
| J7B1 |
68 |
NA |
SCSI - not used |
| J7J1 |
2 |
NA |
CPU2 Fan - not used |
| J9A2 |
10 |
NA |
Serial Port A - not used |
| J9B1 |
5 |
NA |
ICMB - not used |
| J9C1 |
3 |
NA |
IPMB - not used |
| J1D4 |
1-2
2-3
5-6
6-7
9-10
10-11 |
In
In
In
In
In
In |
Normal CMOS Operation (default)
Clear CMOS
Normal Password Operation (default)
Clear Password
Normal BIOS Operation (default)
BIOS Recovery |
| J4B2 |
1-2
2-3 |
Out
In |
BMC Boot Block Write Enabled
BMC Boot Block Write Protected (default) |
| J5A2 |
1-2
3-4 |
In
In |
DCD connected to Serial Port Pin-7
DSR connected to Serial Port Pin-7 (default) |
