Sun Blade T6320 Server Module

501-7842
System Board

541-2514	541-2515	541-2515
4-Core 1.2GHz FRU 4GB Assy 594-4525 A95-AA X5710A A95-BA X5710B	8-Core 1.2GHz FRU 16GB Assy 594-4526 A95-AC X5711A A95-BC X5711B	8-Core 1.2GHz FRU 32GB Assy 594-4527 A95-AC X5712A A95-BC X5712B

541-2516	541-2517
8-Core 1.4GHz FRU 64GB Assy 594-6484 A95-AD X5713A A95-BD X5713B	6-Core 1.2GHz FRU 0MB Assy 596-7041 A95-AB A95-BB

---

511-1327
System Board w/out Processor

541-3837	541-3838	541-3839
4-Core 1.2GHz FRU 8GB Assy 594-6075 A95-AC X5710C	8-Core 1.4GHz FRU 32GB Assy 594-6076 A95-AC X5712C	8-Core 1.6GHz FRU 64GB Assy 594-6077 X5713C
541-3841	541-3842	541-3843
4-Core 1.2GHz 511-1327 + 1.2GHz	8-Core 1.4GHz 511-1327 + 1.4GHz	8-Core 1.6GHz 511-1327 + 1.6GHz

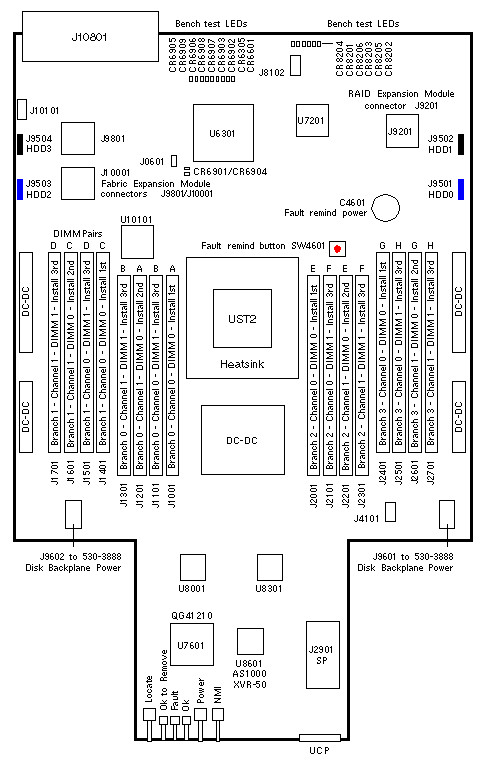

Jumpers and Switches

LOCATION	PINS	SETTING	DESCRIPTION
J0601	3	Out	Unknown
J4101	10	Out	Unknown
J8102	10	Out	Unknown
J10101	10	Out	Unknown
SW4601	NA	NA	Memory Fault Remind Button

Sun Blade T6320 Codename: Glendale

Notes

1. The minimum operating system is Solaris 10 8/07.
2. Refer to Sun Blade T6320 Product Notes E37211 for a list of required patches.
3. The RJ45 connector on UCP-4 Adapter Cable 530-3934 is not supported.
4. System Board 501-7842: (Glendale)
   Heatsink is 310-0112.
   Service Processor 511-1304 is not supported.
   Use Service Processor 501-7822 or 510-1170.
5. System Board 511-1327: (Glendale+)
   Heatsink is 310-0241.
   Service Processor 501-7822 is not supported.
   Use Service Processor 511-1304.

Memory Notes

1. Four, eight, and sixteen FBDIMM configurations are supported.
2. The Sun Blade T6320 performs best if all FBDIMMs are identical.
3. FBDIMM Pairs must have the same Sun part number.

References

1. Sun Blade T6320 Server Module Documentation.
