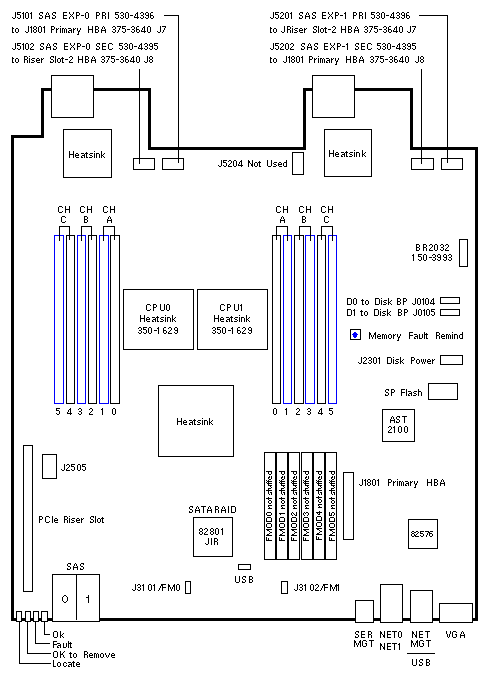

Oracle Database Appliance

511-1464	7026394	7039633	541-4117	541-4119
0MB Board FAB 271-1464	0MB Board FAB 271-1464 Replaced 511-1464	0MB Board FAB 271-1464 Replaced 7026394	0MB Subassembly w/o Processors w/o Heatsinks w/o Fans w/o PCI Riser	0MB FRU w/o Processors with Fans with PCI Riser Pkg FRU F541-4119

7050757	7026396	7026397
0MB Board FAB 271-1464 Replaced 7039633	0MB Subassembly w/o Processors w/o Heatsinks w/o Fans w/o PCI Riser	0MB FRU w/o Processors with Fans with PCI Riser

Jumpers and Switches

LOCATION	PINS	SETTING	DESCRIPTION
J602	1-2	Out	Clear SP Password
J603	1-2	In	SP Debug
J702	1-2	Out	SP Disable
J2309	1-2	Out	Not Documented
J2403	1-2	In	BIOS Write Enable
J2601	1-2	Out	Manufacturing Mode
J3208	1-2	In	GPS
SW2401	N/A	N/A	Clear CMOS Button
SW3001	N/A	N/A	Fault Remind Button

Jumper locations are not illustrated. The default setting is listed.

Notes

1. The Oracle Database Appliance codename was T4 and Comet.
2. The Oracle Database Appliance and Sun Fire X4370 M2 are the same system.
3. Use a 5/32" hex driver to remove and replace the CPU Heatsink.

Thermal Grease Notes

1. The Intel X5675 FRU includes a Cleaning Wipe and X23-7783D Thermal Grease.
2. The System Controller FRU includes two 250-1802 Cleaning Wipes and
   two 310-0065 Shin-Etsu X23-7783D Thermal Grease Syringes.
3. Heatsink FRU F350-1629 includes one 250-1802 Cleaning Wipe.
   The Heatsink is pre-greased with Shin-Etsu X23-7783D.
   A Thermal Grease syringe is not included.

PCI Express Notes

1. NIC 375-3617 is installed in PCI Express Riser Slot 0.
2. NIC 375-3481 is installed in PCI Express Riser Slot 1.
3. HBA 375-3640 is installed in PCI Express Riser Slot 2.
4. HBA 375-3640 is installed in the System Controller Primary HBA Slot.
