7026366	7046538	7083442
System Board	System Board	System Board
7022668	7049431	7078611
Assembly/FRU with 7026366	Assembly/FRU with 7046538	Assembly/FRU with 7083442

Notes

1. The minimum Solaris operating system is Solaris 10 8/11 or Solaris 11 11/11.
2. The NEBS certified Netra X6270 M3 is a modified Sun Blade X6270 M3 with unique
   FRUID and ILOM. Do NOT use Sun Blade X6270 M3 to replace Netra X6270 M3.
3. The NEBS certified Netra Blade X3-2B is a modified Sun Blade X3-2B with unique
   FRUID and ILOM. Do NOT use Sun Blade X3-2B to replace Netra Blade X3-2B.
4. The Netra Blade X3-2B / Netra X6270 M3 is supported in the Netra 6000 and Netra 6000 M2.
5. The part number of the unprogrammed Oracle System Assistant USB is 7038488.
6. Heatsink 7020774 is pre-greased with Shin-Etsu X23-7783D. The Heatsink include
   Heatsink 7020774, one 250-1802 Cleaning Wipe, and one 310-0065 Shin-Etsu
   X23-7783D Thermal Grease Syringe.
7. The Blade CRU/FRU includes two 250-1802 Cleaning Wipes, and two 310-0065
   Shin-Etsu X23-7783D Thermal Grease Syringes.

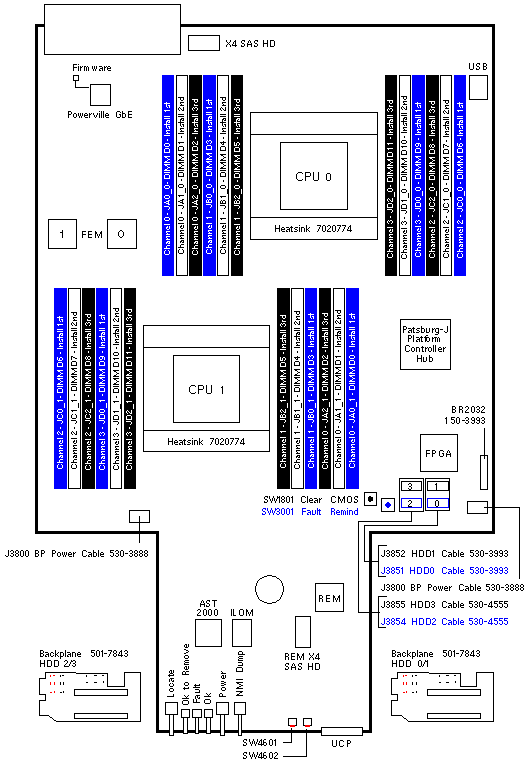

Memory Installation Notes

1. Install memory filler panel 350-1288 in all unused slots.
2. Install DIMMs in the blue slots first.
3. Install DIMMs in the white slots second.
4. Install DIMMs in the black slots third.
5. CPU0 and CPU1 require identical memory configurations.
6. Each CPU supports one, two, or three DIMMs per socket color.
7. Install the highest capacity DIMMs in the blue sockets, then white, then black.
8. Refer to the service manual for additional memory configuration information.

References

1. Netra Blade X3-2B / Netra X6270 M3 Server Module Documentation.
