| 511-1213 |
542-0268 |
7049264 |
7051540 |
|
System Board |
Assembly/FRU
511-1213 + Tray
Tray 341-6196 |
System Board |
Assembly/FRU
7049264 + Tray
Tray 341-6196 |

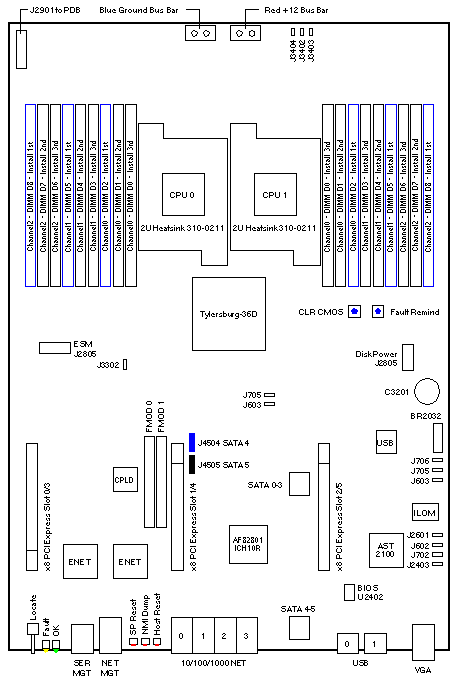

Headers, Jumpers, LEDs, and Switches
| LOCATION |
PINS |
SETTING |
DESCRIPTION |
| J602 |
1-2 |
Out |
Clear SP Password (install to clear) |
| J603 |
1-2 |
Out |
SP Debug |
| J702 |
1-2 |
Out |
SP Disable |
| J705 |
1-2 |
NA |
Not Stuffed |
| J706 |
1-2 |
NA |
Not Stuffed |
| J2403 |
1-2 |
In |
BIOS Write Enable (default) |
| J2601 |
1-2 |
Out |
Manfacturing Mode (default) |
| J3302 |
1-2 |
Out |
CPLD Debug |
| J3402 |
1-3 |
Out |
Unknown |
| J3403 |
1-3 |
Out |
Unknown |
| J3404 |
1-3 |
Out |
Unknown |
Notes
- The minimum Solaris operating system is Solaris 10 10/09.
- The System Board FRU includes two 250-1802 Cleaning Wipes, and
two 310-0065 Shin-Etsu X23-7783D Thermal Grease Syringes.
Heatsink Notes
- Use a 5/32" hex driver to remove and replace the heatsink screws.
- Heatsink FRU 541-2545 includes Heatsink 310-0161, two 240-6751 SpringScrews,
one 250-1802 Cleaning Wipe and one 310-0065 Shin-Etsu X23-7783D Thermal
Grease Syringe. Heatsink 310-0161 is pre-greased with Shin-Etsu G751.
Memory Installation Notes
- Install memory filler panel 350-1288 in all unused slots.
- Install the first three DIMMs in CPU0 and CPU1 slots D8, D5, and D2.
- Install the second three DIMMs in CPU0 and CPU1 slots D7, D4, and D1.
- Use of the same DIMM size and speed is recommended for maximum performance.
References
 Sun Netra X4270 Server Documentation.
|
