7064450 7064803 7052321 7060520

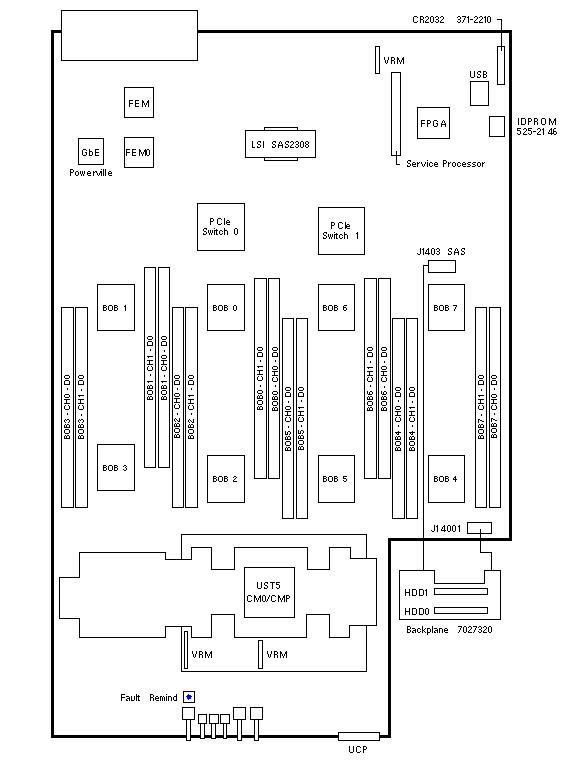

Motherboard
w/o CPU
w/o Enclosure
125mA Fuses		 Blade Subassembly
16-Core 3.6GHz
w/o Enclosure		 Blade Subassembly
16-Core 3.6GHz
with Enclosure		 Blade Assembly
16-Core 3.6GHz
with Enclosure
7078259 7078261 7078262 7080300
Motherboard
w/o CPU
w/o Enclosure
500mA Fuses		 Blade Subassembly
16-Core 3.6GHz
w/o Enclosure		 Blade Subassembly
16-Core 3.6GHz
with Enclosure		 Blade Assembly
16-Core 3.6GHz
with Enclosure
7078259 7309324 7309325 7313149
Motherboard
w/o CPU
w/o Enclosure
500mA Fuses		 Blade Subassembly
16-Core 3.6GHz
w/o Enclosure		 Blade Subassembly
16-Core 3.6GHz
with Enclosure		 Blade Assembly
16-Core 3.6GHz
with Enclosure

Notes

  1. The minimum Solaris 10 operating system is Solaris 10 1/13.
  2. The minimum Solaris 10 operating system for domains only is Solaris 10 9/10.
  3. The minimum Solaris 11 operating system is Solaris 11.1 SRU 4.6.
  4. The NEBS certified Netra SPARC T5-1B is a modified SPARC T5-1B with unique
    FRUID and ILOM. Do NOT use SPARC T5-1B to replace Netra SPARC T5-1B.
  5. The Netra SPARC T5-1B is supported in the Netra 6000 and Netra 6000 M2.
  6. Disk power and data cables are molded into Backplane Assembly 7027320.

Memory Installation Notes

  1. All sixteen slots must be filled with a DIMM.
  2. Mixing DIMM sizes and ranks is not supported.

References

  1. Netra SPARC T5-1B Server Module Documentation.
