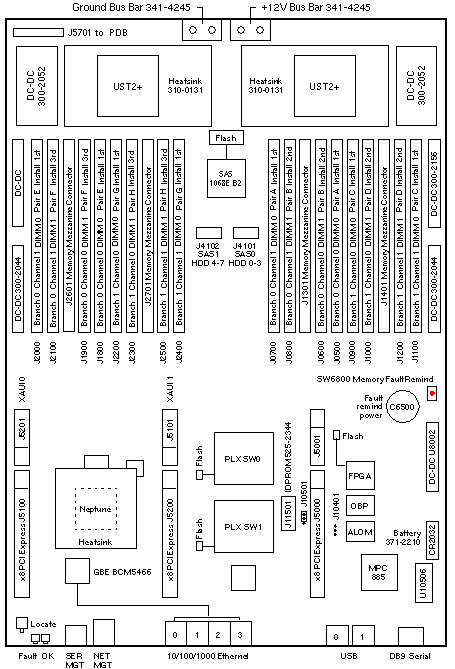

Netra T5440

<a href="../../Systems/SupportHeaders/SYSBD_Netra_T5440.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

Shipped in PATA-DVD Configurations

540-7684 540-7686 540-7810 540-7918

8-Core 1.2GHz FRU
501-7847 + 540-7735 6-Core 1.2GHz FRU
501-7846 + 540-7735 4-Core 1.2GHz FRU
511-1035 + 540-7735 8-Core 1.4GHz FRU
501-7848 + 540-7735

501-7847 501-7846 511-1035 501-7848

8-Core 1.2GHz
w/o Tray 540-7735 6-Core 1.2GHz
w/o Tray 540-7735 4-Core 1.2GHz
w/o Tray 540-7735 8-Core 1.4GHz
w/o Tray 540-7735

Shipped in SATA-DVD Configurations

542-0232 542-0234 542-0236 542-0238

8-Core 1.2GHz FRU
511-1393 + 540-7735 6-Core 1.2GHz FRU
511-1392 + 540-7735 4-Core 1.2GHz FRU
511-1391 + 540-7735 8-Core 1.4GHz FRU
511-1378 + 540-7735

511-1393 511-1392 511-1391 511-1378

8-Core 1.2GHz
w/o Tray 540-7735 6-Core 1.2GHz
w/o Tray 540-7735 4-Core 1.2GHz
w/o Tray 540-7735 8-Core 1.4GHz
w/o Tray 540-7735

Netra T5440 Codename: Congo

Notes

The minimum operating system is Solaris 10 8/07.

Memory Notes

Eight, twelve, and sixteen FBDIMM configurations are supported on the system board.
Eight and sixteen FBDIMM configurations are supported on the memory mezzanine.
The system board requires sixteen FBDIMMs before installing the memory mezzanine.
All FBDIMMs must be the same density. Pairs must have the same Sun part number.
Low Voltage 1.5V FBDIMMs require System Firmware 7.1.6.g.
Memory Riser 501-7678 is only compatible with 1.8V VDD/VDDQ DIMMs.

References

Netra T5440 Server Documentation.

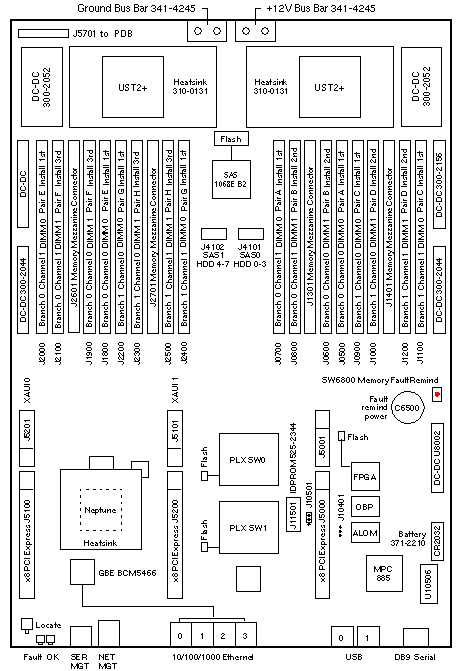

Netra T5440

<a href="../../Systems/SupportHeaders/SYSBD_Netra_T5440_SH_ANCHOR_7049207.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

7049207 7049206 7049202 7049208

8-Core 1.2GHz FRU
7049136 + 540-7735 6-Core 1.2GHz FRU
7049135 + 540-7735 4-Core 1.2GHz FRU
7049134 + 540-7735 8-Core 1.4GHz FRU
7049133+ 540-7735

Netra T5440 Codename: Congo

Notes

The minimum operating system is Solaris 10 8/07.

Memory Notes

Eight, twelve, and sixteen FBDIMM configurations are supported on the system board.
Eight and sixteen FBDIMM configurations are supported on the memory mezzanine.
The system board requires sixteen FBDIMMs before installing the memory mezzanine.
All FBDIMMs must be the same density. Pairs must have the same Sun part number.
Mixing 1.8V and 1.5V FBDIMMs is not supported.
Low Voltage 1.5V FBDIMMs require System Firmware 7.1.6.g.

References

Netra T5440 Server Documentation.
