7019372	7019409	7022666
System Board Subassembly w/o UltraSPARC T4 w/o Enclosure	System Board Assembly w/o Enclosure	8-Core System Board Assembly 2.85GHz UltraSPARC T4
7046437	7050463	7053081
System Board Subassembly w/o UltraSPARC T4 w/o Enclosure	System Board Assembly w/o Enclosure	8-Core System Board Assembly 2.85GHz UltraSPARC T4

Netra SPARC T4-1B Codename: Netra Moura

Notes

1. Solaris 10 10/09 is supported with the complete Solaris 10 8/11 bundle.
2. Solaris 10 9/10 is supported with the complete Solaris 10 8/11 bundle.
3. The NEBS certified Netra SPARC T4-1B is a modified SPARC T4-1B with unique
   FRUID and ILOM. Do NOT use SPARC T4-1B to replace Netra SPARC T4-1B.
4. Disk power and data cables are molded into Backplane Assembly 530-4375.
5. The T4-1B is supported in the Netra 6000 and Netra 6000 M2.

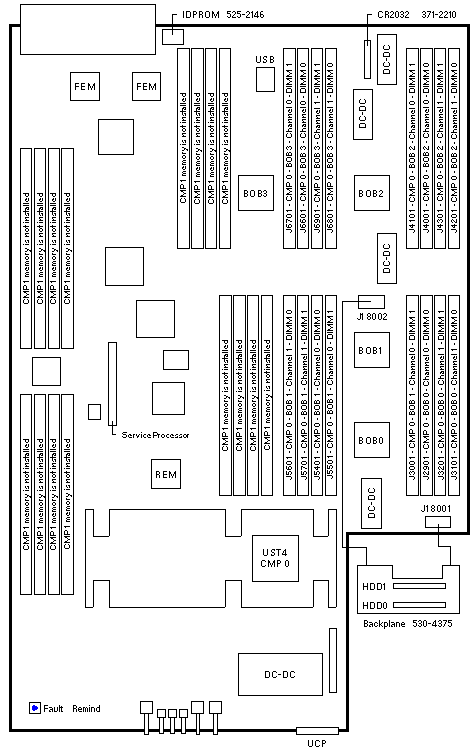

Memory Installation Notes

1. Install the first four DIMMs in the blue slots.
2. Install the second four DIMMs in the white slots.
3. Install the last eight DIMMs in the black slots.
4. Install DIMM Filler 350-1288 in all unused DIMM slots.

References

1. Netra SPARC T4-1B Server Module Documentation.
