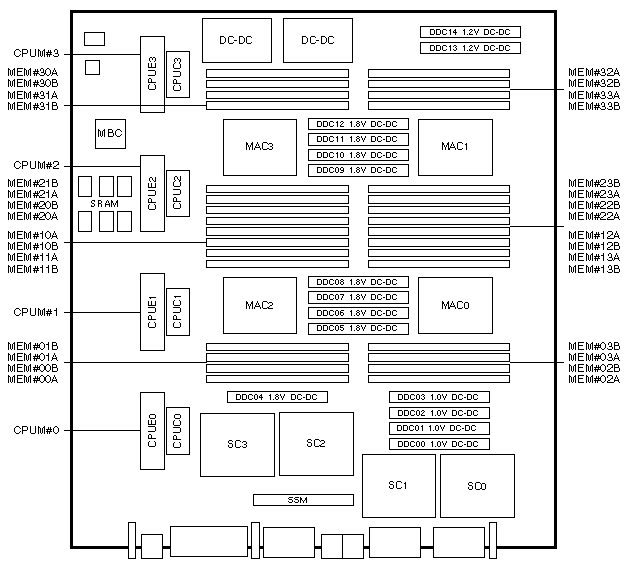

CPU/Memory Board

371-2214
CMU

Notes

1. The minimum CPU requirement is two CPU Modules.
2. The minimum memory requirement is sixteen DIMMs.
3. Group A memory must be equal to or larger than Group B memory.
4. Install the first sixteen DIMMs in slots ending in A (Group-A/Memory Module#0).
5. Install the second sixteen DIMMs in slots ending in B (Group-B/Memory Module#1).
6. Socket DDC04 was removed from 371-2214-06 in August 2009. (WO_41779)

References

1. SPARC Enterprise M8000 Server Documentation.
2. SPARC Enterprise M9000 Server Documentation.
3. Refer to M8000/M9000 Hardware Documentation for Product Notes for different XCP versions.
4. Refer to SPARC64 VII CPU Upgrade Configurations for High-End Servers document for rules about mixing CPUs.

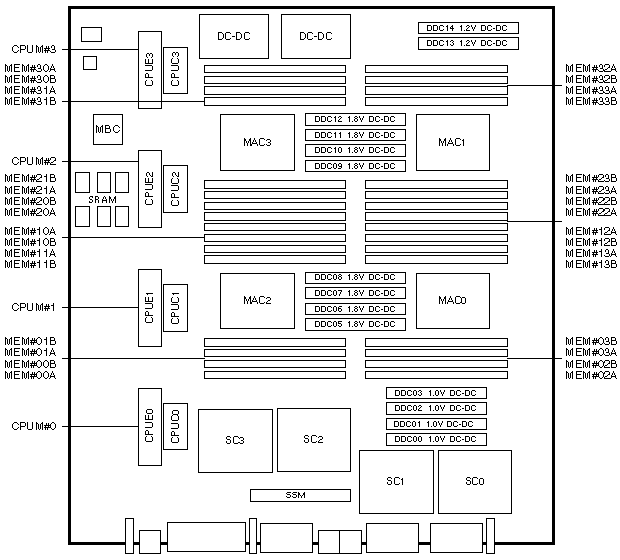

Notes

1. The minimum CPU requirement is two CPU Modules.
2. The minimum memory requirement is sixteen DIMMs.
3. Group A memory must be equal to or larger than Group B memory.
4. Install the first sixteen DIMMs in slots ending in A (Group-A/Memory Module#0).
5. Install the second sixteen DIMMs in slots ending in B (Group-B/Memory Module#1).
6. Socket DDC04 is not installed on board 371-4617 or 371-4930.

References

1. SPARC Enterprise M8000 Server Documentation.
2. SPARC Enterprise M9000 Server Documentation.
3. Refer to M8000/M9000 Hardware Documentation for Product Notes for different XCP versions.
4. Refer to SPARC64 VII CPU Upgrade Configurations for High-End Servers document for rules about mixing CPUs.
