Storage F5100

511-1095	511-1149	541-3143

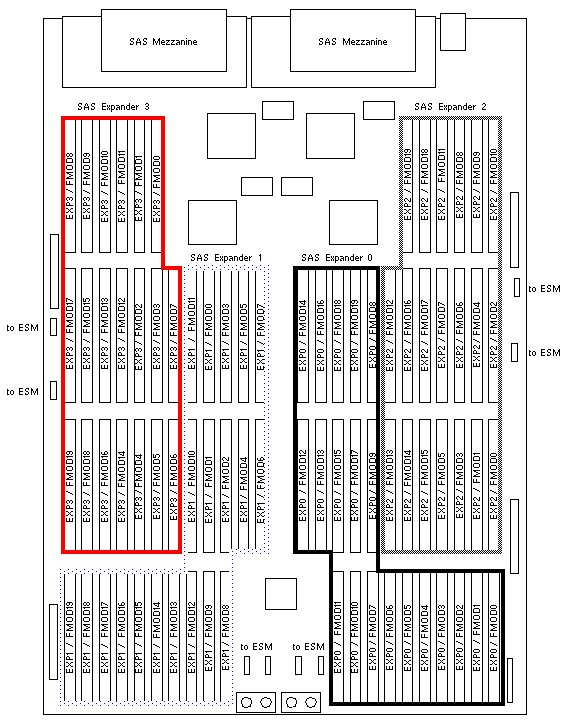

Motherboard	SAS Mezzanine	Motherboard FRU 511-1095 + 511-1149 with Tray 541-3144

Storage F5100 Codename: Lightning Flash 1.0 (aka Mongo)

Notes

1. The Storage F5100 is pre-configured with 20, 40, or 80 Flash Modules.
2. Option XTA4ST3S-24GBFM includes four 371-4091 or 371-4846 Flash Modules.
3. Some F5100 systems shipped with FMod color-coded connectors in Domains 0 and 2 swapped.
   (See FAB article 1022255.1.)
4. FMod configuration rules are not included in the Installation Guide or Service Manual.

References

1. Sun Storage F5100 Flash Array Documentation.
