Netra CP2140

Codename: Othello+

Other supported platforms:
Telco Systems	Netra CT 410, CT 810

CP2140S-650

501-6358	501-6403	<=501-6416-04	<=501-6417-04	501-6529
0MB 650MHz Service FRU	1GB 650MHz 501-6358 with 2× 375-3025 Lucent FRU	2GB 650MHz 501-6358 with 2× 375-3026	4GB 650MHz 501-6358 with 2× 375-3114	2GB 650MHz 501-6358 with 2× 375-3125 Lucent FRU
501-6772	501-6967	501-6416-05	501-6417-05	501-6913
0MB 650MHz Service FRU	1GB 650MHz 501-6772 with 2× 375-3025 Lucent FRU	2GB 650MHz 501-6772 with 2× 375-3026	4GB 650MHz 501-6772 with 2× 375-3114	2GB 650MHz 501-6772 with 2× 375-3125 Lucent FRU

Other supported platforms:
Telco Systems	Netra ct 400, ct 800

CP2140S-650-1GBLU

501-6926	501-6927
0MB 650MHz FAB 270-6772 No FRU	2GB 650MHz 501-6926 with 2× 375-3125 CP2140S-650-1GBLU Lucent FRU
501-7591	501-7592
0MB 650MHz FAB 270-7428	2GB 650MHz 501-7591 with 2× 375-3392 CP2140S-6502GBSWL4

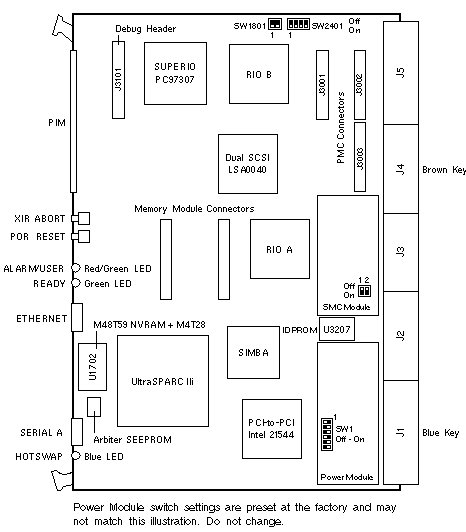

Jumper Settings

SWITCH	DIP	SETTING	DESCRIPTION
SW0501	1 2	On On	SMC setting for non-HA system (default)
	1 2	Off On	SMC setting for HA system
SW1801	1 2	Off Off	Boot Flash PROM selected (default)
	1 2	On On	User Flash PROM 1 selected
	1 2	Off On	User Flash PROM 1 and 2 selected
	1 2	On Off	ROMBO selected
SW2401	1 1	Off On	SCSI Bus A Termination Power enabled SCSI Bus A Termination Power disabled
	2 2	Off On	SCSI Bus B Termination Power enabled SCSI Bus B Termination Power disabled
	3 3	Off On	SCSI Bus A Termination enabled SCSI Bus A Termination disabled
	4 4	Off On	SCSI Bus B Termination enabled SCSI Bus B Termination disabled

Netra ct 400 Codename: Tonga Netra ct 800 Codename: Monte Carlo Netra CT 410/810 Codename: Makaha Sun Fire 12K Codename: Starkitty Sun Fire 15K Codename: Starcat Sun Fire E20K/E25K Codename: Amazon 20 / 25

Notes

1. The minimum CP2140 operating system is Solaris 8 2/02.
2. The minimum Netra CT 410/810 operating system is Solaris 9.
3. The Sun Fire 12K/15K and E20K/25K require SMS 1.4.1 with patches.
4. The M48T59 Snaphat TOD at U1702 is part number 100-5876.
5. The Hostid and MAC address are in the I²C SEEPROM 100-6755 at U3207.
6. High Availability (HA) systems use the BD_SEL, HEALTHY, and PCI-RST signals to control each slot.
7. The 501-6926 and 501-6927 were released in August 2004 to replace the CP1500 used by Lucent in the Netra ct 400 and Netra ct 800.

Option Notes

1. Use 512MB Memory 375-3025, Option XCP2000-MEM-512.
2. Use 1GB Memory 375-3026, Option XCP2000-MEM-1GB.
3. Use 1GB Memory 375-3125, Option XCP2000-MEM-1GBSW.
4. Use 2GB Memory 375-3114, Option XCP2000-MEM-2GB.
5. Use Rear Transition Card 375-0121, Option XCP2040-TRN.
6. Use Rear Transition Card 375-3429, Option XCP2040-TRN-4.

UltraSPARC IIi Notes

1. The 650MHz UltraSPARC IIi is similar to the 270-440MHz UltraSPARC IIi. Differences include integrated L2 Cache and SDRAM Memory Control.
2. The 650MHz UltraSPARC IIi is based on the 500MHz UltraSPARC IIe.
3. The 650MHz UltraSPARC IIi OBP and OS name is UltraSPARC IIe.

Patch Information:

Patch Readmes and Downloads

Boot PROM and LOM Revisions

References

1. Sun Netra CP2140 CompactPCI Board Documentation.

Netra CT 410/810 Codename: Makaha

Notes

1. The minimum CP2140 operating system is Solaris 8 2/02.
2. The M48T59 Snaphat TOD at U1702 is part number 100-5893.
3. The Hostid and MAC address are in the I²C SEEPROM 101-0207 at U3207.

UltraSPARC IIi Notes

1. The 650MHz UltraSPARC IIi is similar to the 270-440MHz UltraSPARC IIi. Differences include integrated L2 Cache and SDRAM Memory Control.
2. The 650MHz UltraSPARC IIi is based on the 500MHz UltraSPARC IIe.
3. The 650MHz UltraSPARC IIi OBP and OS name is UltraSPARC IIe.

Patch Information:

Patch Readmes and Downloads

Boot PROM and LOM Revisions

References

1. Sun Netra CP2140 CompactPCI Board Documentation.
