Netra CP2080

Codename: Sputnik Orion

CP2080-500

375-3023	375-3099	375-3100	595-5873	595-5958
500MHz 0MB w Front Panel	CP2080 375-3094 1GB OEM FRU	256MB OEM FRU	CP2080 375-3023 256MB OEM FRU Inactivated 3/02	CP2060 375-3023 0MB FRU Inactivated 3/02

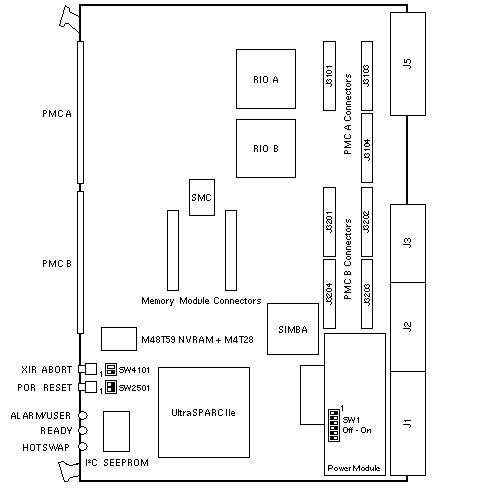

Jumper Settings

SWITCH	DIP	SETTING	DESCRIPTION
SW1	1-6	preset	Factory use only
SW2501	1	On Off	OBP write enabled (default) OBP write protected
	2	On On	User Flash PROM enabled (default) User Flash PROM write enabled (default)
		Off Off	User Flash PROM disabled User Flash PROM write protected
SW4101	1	On Off	Boot Flash PROM selected (default) Use SMC configuration block
	2	On/Off	Reserved

SMC Configuration Block Options
Byte 7 Bit <3:2>

USER FLASH	ROMBO	USER FLASH	MAIN FLASH
00 0-16MB User Flash	01 0-4MB ROMBO 4-12MB User Flash 12-16MB Main Flash	10 0-8MB User Flash 8-12MB Main Flash 12-16MB ROMBO	11 0-4MB Main Flash 4-12MB User Flash 12-16MB ROMBO

Notes

1. The Hostid and MAC address are in the I²C SEEPROM.
2. The CP2080 uses 256MB Memory mezzanine 375-3024.
3. The CP2080 uses 512MB Memory mezzanine 375-3025.
4. The CP2080 uses 1GB Memory mezzanine 375-3026.
5. The CP2080 uses Rear Transition Card 375-0120.
6. Use the set-smcenv and show-smcenv OBP commands to set and display the System Management Controller configuration block.

References

1. Sun Netra CP2060/CP2080 CompactPCI Board Documentation.
