QLogic SANbox 5602 Switch

Premier Support End Date = January 2015
Follow this link to view Service Life End Dates.

371-0844 594-2295 594-2296
Switch FRU
License Key for
8× 4Gbps Ports		 SG-XSWQLG5602-8P
Switch 371-0844
License Key for
8× 4Gbps Ports
8 Short Wave SFPs		 SG-XSWQLG5602-20P
Switch 371-0845
License Key for
16× 4Gbps Ports
4× 10Gbps Ports
16 SW 4Gbps SFPs
594-0609 594-2474
SG-XSWQLG5200-CBL
9" Cable 530-3369		 SG-XSWQLG5200-RK-Z
Rack Mount Option
852-2403 852-2404
SG-XSWQLG5602-UPG
4 Port License Key
4 SW 4Gbps SFPs		 SG-XSWQLG5602-10UP
10Gbps License Key
3" Cable 530-3368

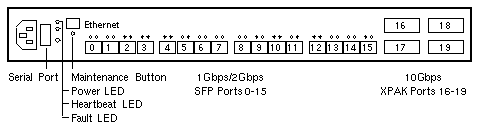

Front View

Full Components List


Notes

  1. XPAK Transceivers are not included with the switch options.
  2. Connect up to four switches with 3" and 9" XPAK Cables 530-3368 and 530-3369.
  3. The Sanbox 5602 has two hot-swappable power supplies.
