QLogic SANbox 5600 Switch

Premier Support End Date = January 2015
Follow this link to view Service Life End Dates.

F371-1554 594-2863 594-2864
Switch FRU
License Key for
8× 2Gbps Ports		 SG-XSWQLG5600-8P-Z
Switch 371-1554
License Key for
8× 4Gbps Ports
8 Short Wave SFPs		 SG-XSWQLG5600-20-Z
Switch 371-1587
License Key for
16× 4Gbps Ports
4× 10Gbps Ports
16 SW 4Gbps SFPs
594-0609 594-2474
SG-XSWQLG5200-CBL
9" Cable 530-3369		 SG-XSWQLG5200-RK-Z
Rack Mount Option
852-2676 852-2677
SG-XSWQLG5600-UP-Z
4 Port License Key
4 SW 4Gbps SFPs		 SG-XSWQLG5600U10-Z
10Gbps License Key
3" Cable 530-3368

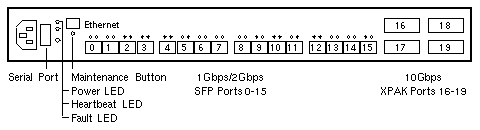

Front View

Full Components List


Notes

  1. XPAK Transceivers are not included with the switch options.
  2. Connect up to four switches with 3" and 9" XPAK Cables 530-3368 and 530-3369.
  3. The Sanbox 5600 has a single power supply that is not field replaceable.
