N2040 Secure Application Switch

Codename: Chromis 1

Premier Support End Date = January 2017
Follow this link to view Service Life End Dates.

N2040 541-0202	N2040V 541-0202	N2040Z 541-1424	N2040VZ 541-1424
Assembly/FRU System Board SSL Function Card Power Supply ×2	Assembly/FRU System Board SSL Function Card Power Supply ×2 Virtualization Enabled	Assembly/FRU System Board SSL Function Card Power Supply ×2	Assembly/FRU System Board SSL Function Card Power Supply ×2 Virtualization Enabled

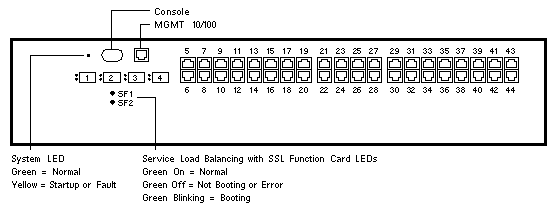

Front View

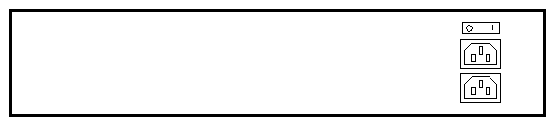

Rear View

Notes

1. SFPs are not included with the N2040 Secure Application Switch.
2. Ethernet cables are not included with Option 2001 or Option 2002.
3. Ethernet cables are not included with the N2040 Secure Application Switch.
4. Rack Mount Kit 560-2777 is included with the N2040 Secure Application Switch.
5. Rack Mount Kit 560-2820 is included with the post July 2006 N2040 Secure Application Switch.
6. Console Port Cable 530-3347 is included with the N2040 Secure Application Switch.

Patches

1. Patch 118724-01 V2.0 Service Update 1, 12/13/04.
2. Patch 118724-02 V2.0 Service Update 2, 01/26/05.
3. Patch 118724-03 V2.0 Service Update 3, 03/17/05.
4. Patch 118724-04 V2.0 Service Update 4, 06/23/05.
5. Patch 118724-05 V2.0 Service Update 5, 09/13/05.
6. Patch 118724-06 V2.0 Service Update 6, 03/07/06.

References

1. Secure Application Switch - N2000 Series Documentation.
