N1400 Secure Application Switch

Codename: SunFish

N1400 541-0298	N1400V 541-0298	N1400Z 541-1423	N1400VZ 541-1423
Assembly/FRU	Assembly/FRU Virtualization Enabled	Assembly/FRU	Assembly/FRU Virtualization Enabled

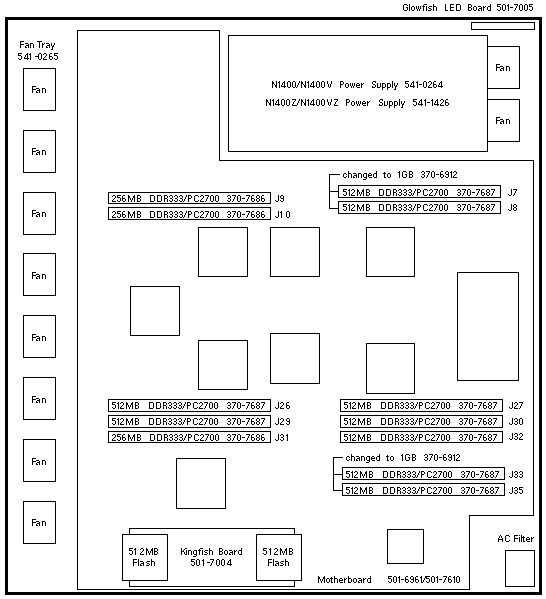

Overhead View

Rear View

Notes

1. The N1400 does not include SFPs.
2. The N1400, SFP Option 2001, and SFP Option 2002 do not include Ethernet cables.
3. The N1400 includes Console Port Cable 530-3347 and Rack Mount Kit 560-2779.
4. The 541-0298-04 memory configuration was changed in June 2006. (WO_33623)
5. The 541-0298-05 and 541-1423-01 have the same memory configuration.
6. FCO Kit F560-2878 includes four 370-6912 1GB DIMMs. See FAB article1001056.1 for more details.

References

1. Secure Application Switch - N1000 Series Documentation.
2. Sun Secure Application Switch - Release Notes for v3.0.1, 819-3044.
3. Sun Secure Application Switch - Configuration and Implementation Guide for v3.0, 819-3045.
