FC-100 Hub / StorEdge F100 Hub

Option 6732

370-3012
Vixel Corporation
IntraLink 1000

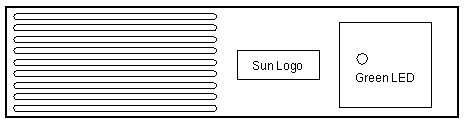

Front View

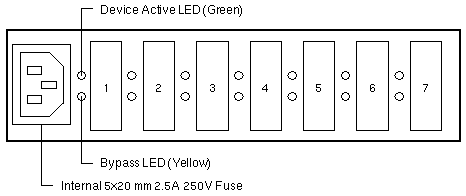

Rear View

Notes

  1. The Bypass LED is On when a port is not connected.
  2. The Device Active LED is Off when a port is not connected.
  3. The following cable type is supported with GBIC 370-2303:
    50/125 Multimode Fiber up to 500 meters

References

  1. Sun StorEdge FC-100 Hub Documentation
