Brocade Silkworm 2800 16-Port Switch

Options SG-SNFCS44 / XT8-BR-2802-0008

Premier Support End Date = July 2008
Follow this link to view Service Life End Dates.

595-6055 595-6497 370-4396
XT8-BR-2802-0008
Switch 370-4505
StorEdge 9900 Option		 SG-SNFCS44
Switch 380-0669
StorEdge 9900 Option		 SW2800 Switch/FRU
Professional Services Option

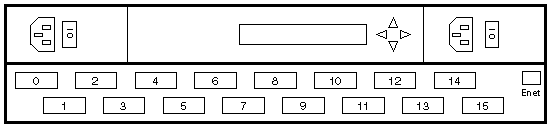

Front View

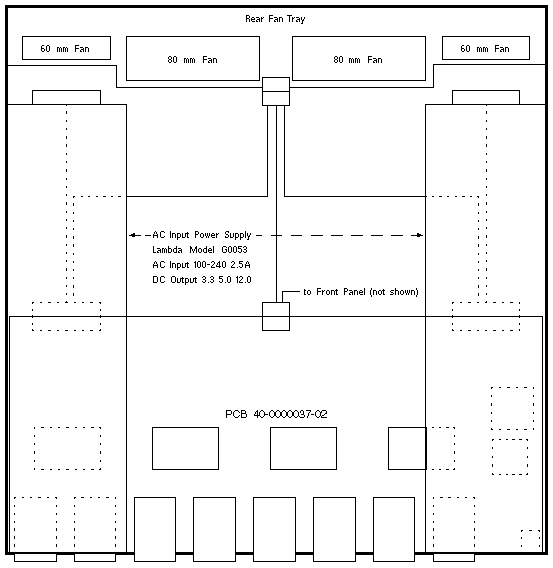

Overhead Cutaway View

Table Legend
[F] = Field Replaceable Unit (FRU)

PART # DESCRIPTION
595-6420
370-4511 [F]		 Short Wave GBIC, Option XT8-XBR-000025
Short Wave GBIC
595-6416
370-4512 [F]		 Long Wave GBIC, Option XT8-XBR-000011
Long Wave GBIC
