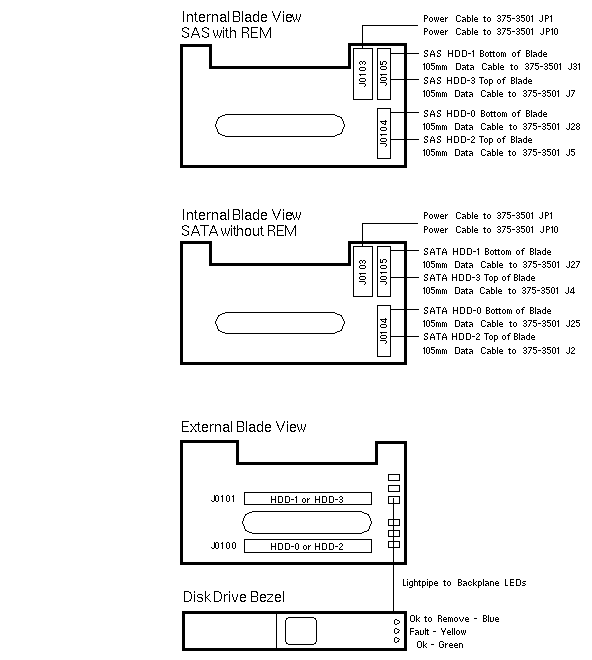

2-Slot SAS/SATA Backplane

No Sun Part#
FAB 270-7391
P/N DAS90TB16B0

Sun Blade X6250 Codename: Wolf

Notes

  1. The Disk Backplane, Data Cable, and Power Cable are not available as FRUs.
  2. Disk Backplane Data Cables and Power Cables do not have Sun part numbers.
  3. The Power Cable may be labeled 540-2479. This is a disk bracket released in 1993.
  4. SAS configurations require RAID Expansion Module (REM) 371-2658.
  5. The REM supports RAID 0/1/5/10 with SAS disk drives.
  6. Use the system board SAS connectors when SAS drives and REM are installed.
  7. Use the system board SATA connectors when SATA drives are installed.

References

  1. Sun Blade X6250 Server Module Documentation.
