Oracle System Handbook - ISO 7.0 May 2018 Internal/Partner Edition

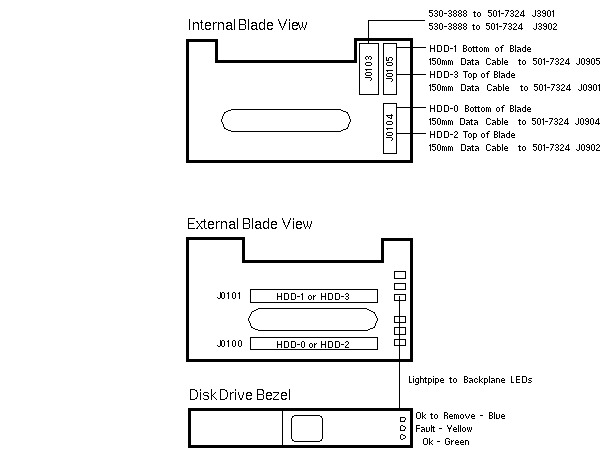

2-Slot SAS/SATA Backplane

<a href="../../Systems/SupportHeaders/SCSI_X6220_2Slot_SAS_Bkpl.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

501-7391

Sun Blade X6220 Codename: Gemini

Notes

The 2-Slot Disk Backplane is not available as a FRU.
The Celestica 930764C-01 Disk Data Cable does not have a Sun part number.
There is no cable kit for the Sun Blade X6220.

References

Sun Blade X6220 Server Module Documentation.
