6-Slot SCSI Disk Backplane

370-6926	371-1470
Newisys Backplane S00405 Bracket S00940	Newisys Backplane Unknown Bracket Unknown

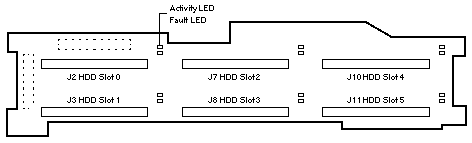

Front View

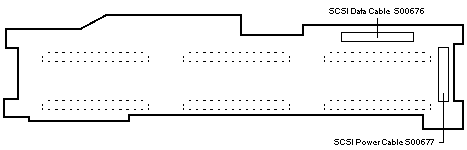

Rear View

Sun Fire V40z Codename: Stinger4P

Notes

1. Activity and Fault LEDs are lightpiped to the disk assembly bezel.
2. The SCSI Data Cable is routed under the System Board.
3. The cables do not have separate Sun part numbers.
4. Use Cable Kit 370-6928 for Chassis 380-1011, Chassis FRU 380-1010.
5. Use Cable Kit 370-6928 for Chassis 380-1207, Chassis FRU 380-1206.
6. Use Cable Kit 371-1472 for Chassis 380-1379, Chassis FRU 380-1378.

References

1. Sun Fire V40z Server Documentation.
