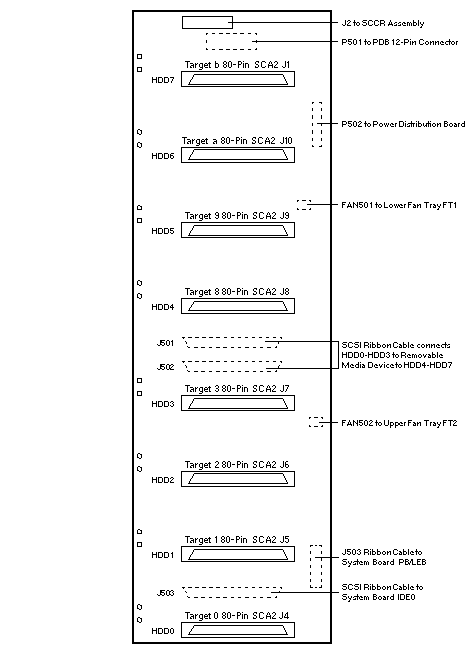

8-Slot SCSI Disk Backplane

<a href="../../Systems/SupportHeaders/SCSI_V250_8Slot_Bkpl.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

370-5959

Sun Fire V250 Codename: Enchilada 2P Tower

Notes

A 1M Cable connects the SCSI bus between the upper and lower disk drives.
A .26M Cable connects the SCSI bus between the System Board and SCSI Backplane.

References

Sun Fire V250 Server Documentation.
