2-Slot SCSI Disk Backplane

<a href="../../Systems/SupportHeaders/SCSI_V20z_2Slot_Bkpl.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

370-6647

Newisys S01194

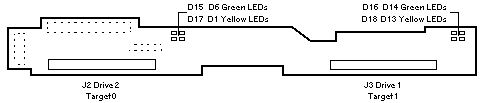

Front View

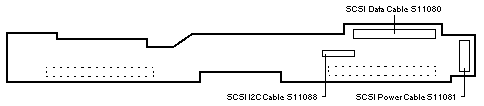

Rear View

Sun Fire V20z Codename: Stinger2P

Notes

LEDs D1, D6, D13, and D14 are lightpiped to the disk assembly bezel.
The cables do not have separate Sun part numbers. Order Cable Kit 370-6676.
