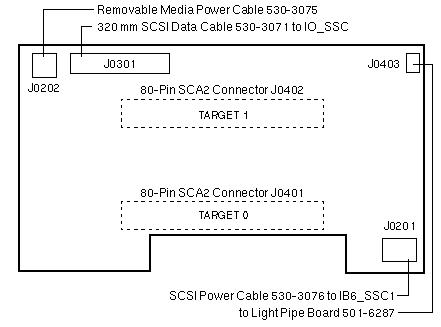

2-Slot SCSI Disk Backplane

501-6015	540-4966
SCSI Adapter	Disk Drive/RMA Bay Assembly/FRU

Sun Fire V1280 Codename: Lightweight 8 Sun Fire E2900 Codename: Amazon 2

Notes

1. Cables 530-3075 and 530-3076 are not color coded.
2. Cable 530-3071 is not removable from the SCSI Adapter.
3. Assembly 540-4966 includes cables 530-3075 and 530-3076.
4. Cable Kit 560-2686 includes cables 530-3075 and 530-3076.

References

1. Sun Fire E2900 Server Documentation.
2. Sun Fire V1280 Server Documentation.
3. Sun Netra 1280 Server Documentation.
