Removable Media Backplane

<a href="../../Systems/SupportHeaders/SCSI_U450_RmvblMed_Bkpl.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

501-3128

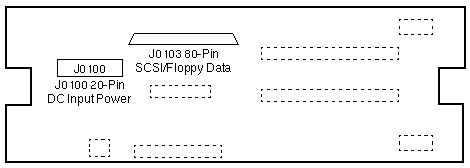

Front View

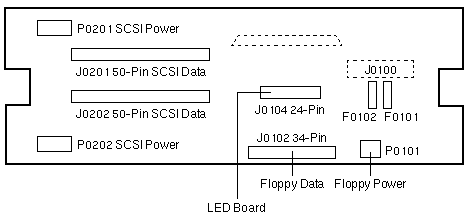

Rear View

Notes

The RMA Backplane is controlled by /pci@1f,4000/scsi@2.
The external U450/E450 SCSI bus is controlled by /pci@1f,4000/scsi@2.

References

Sun Enterprise 450 Server Documentation.
Sun Ultra 450 Workstation Documentation.
