Floppy and SCSI Adapter

<a href="../../Systems/SupportHeaders/SCSI_U30_U60_Adptr.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

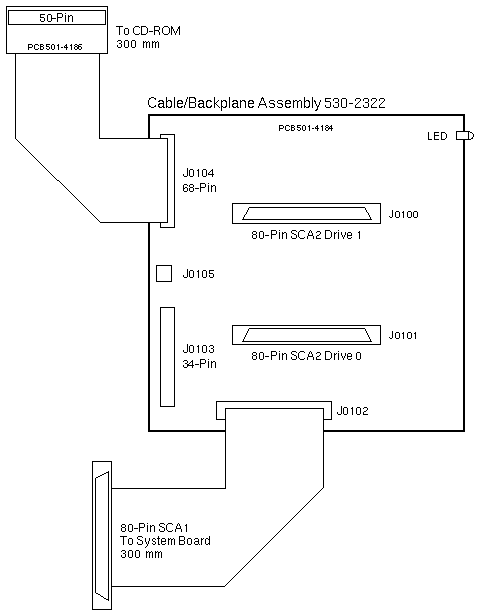

530-2322 540-3016 330-2148

Cable Assembly Drive Bay FRU Drive Bay

Additional Information & Views

Notes

FRU 540-3016 includes the Cardcage and Cable Assembly.
Cable Assembly 530-3022 includes the PCBs and Cables.
Cables are soldered to the PCBs.
