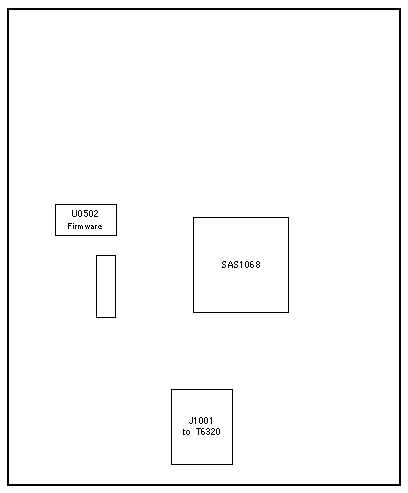

RAID Expansion Module

Codename: Jackal

Option X4601A

501-7821
REM

Additional Information & Views

Notes

1. Patch 138445-01 updates LSI SAS1068 firmware to 1.20.0. (fixes BugID 15482762 [SUNBT6706446])
2. Sun Blade 6000 Disk Module and Sun Blade 6000 Multi-Fabric Network Express
   Module require Patch 138445-02. Patch 138445-02 is included on 501-7821-07.
3. Patch 138445-03 fixes PHY lockup (BugID 15562157 [SUNBT6839770]) and is on 501-7821-08.
4. Option X4601A is not supported with the T6320+ (Glendale+) .

SAS Connectivity Matrix

SAS Notes

1. Sun Blade T6320 requires REM X4601A or X4607A for onboard SAS connectivity.

References

1. Sun Blade T6320 Server Module Documentation.
2. Sun Integrated Lights Out Manager (ILOM) 2.0 Documentation.

Notes

1. Sun Blade X6450-AA 540-7595 is not supported. Sun Blade X6450-AB 540-7821 is required.

Onboard SAS/SATA Notes

1. T6320 requires REM X4601A or X4607A for onboard SAS connectivity.
2. T6340, X6240, and X6270 require REM X4607A for onboard SAS connectivity.
3. X6240 and X6270 with REM X4607A is optional for onboard SATA RAID connectivity.

SAS Connectivity Matrix

References

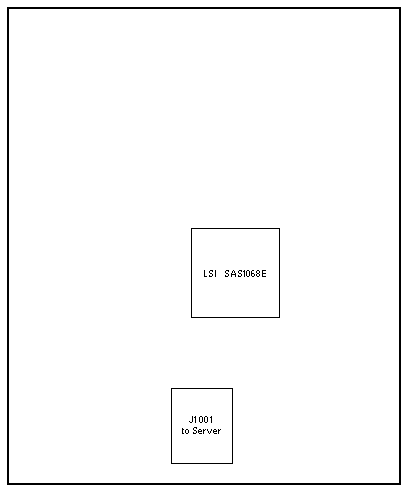

1. Sun Blade G2 RAID 0/1 Expansion Module Installation Guide, 820-5448.
